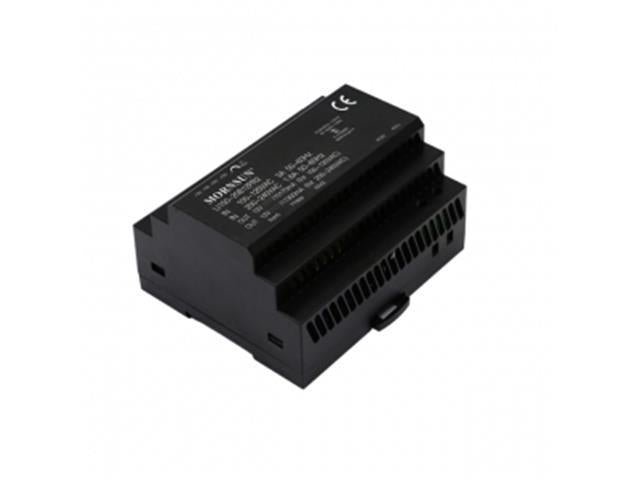

DIN Rail Plastic Case Switch Mode Power Supply Input: 90 ~ 264VAC/120 - 370VDC. Output 15VDC @ 9,5A 4KVAC Isolation
Plastic Case Switch Mode Power Supply
Feature
- Universal 85-264VAC (277VAC available)
or 120-370VDC (390VDC available) input voltage
- Withstand 300VAC surge input for 5s
- Operating ambient temperature range: -30℃ to +70℃
(can be start-up at -40℃)
- High I/O isolation test voltage up to 4000VAC (Input output)
- Over-voltage class III (Designed to meet EN61558
standards)
- Low standby power consumption, low ripple & noise
- High efficiency, high reliability
- Output short circuit, over-current, over-voltage
over-temperature protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Ultra-thin design: width 105mm (6SU)
Downloads
Additional Information
Device |
Power Supply |
Type |
Plastic Case | Switch Mode |
Input Voltage |
90 ~ 264VAC/120 - 370VDC |
Output |
15VDC @ 9,5A |
Size |
W-108mm x H-90mm x D-56mm |
