LIMF480-23B48

Name: LIMF480-23B48 - Communica [Part No: LIMF480-23B48]
Brand: Mornsun
SKU: LIMF480-23B48
Price: 3235 ZAR
Availability: InStock

SKU: LIMF480-23B48

BRAND: Mornsun

In Stock
R 3,720.25_{(inc VAT)}
R 3,235.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply

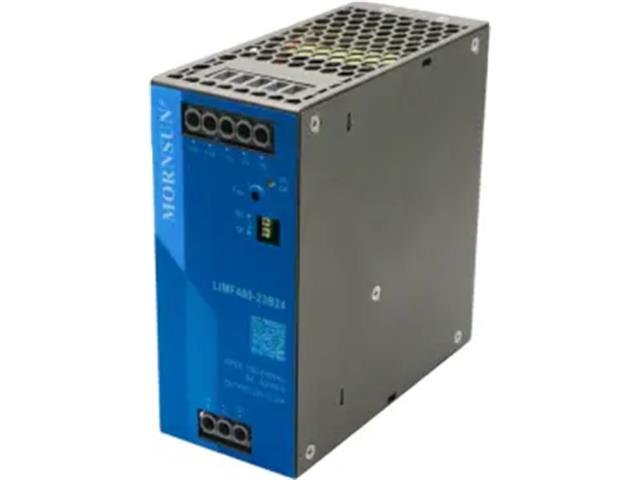

DIN Rail Metal Case Hi Perf./Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 48VDC @ 10A IECEx/Atex Certified

AC/DC 480W DIN-Rail Power Supply

Specifications

Universal 85 - 277VAC or 120 - 390VDC Input voltage
Operating ambient temperature range: -40℃ to +85℃, 60 ℃ @ 100% load without derating
Efficiency up to 95%
Active PFC, PF＞0.97
DC OK function
Double-sided conformal coating, salt-spray proof, explosion-proof
Operating altitude up to 5000m
Input under-voltage protection
Output short circuit, over-current, over-voltage, over-temperature protection
Safety according to ATEX, IECEx increased safety type explosion-proof certification
5 years warranty
Safety according to ANSI/ISA 71.04-2013 G3
OVC III (design refer to EN62477, 2000m)
Safety according to IEC/UL62368, UL508

Downloads

Datasheet - LIMF480-23B48

Additional Information

Device	Power Supply
Type	AC/DC \| 480W \| DIN-Rail
