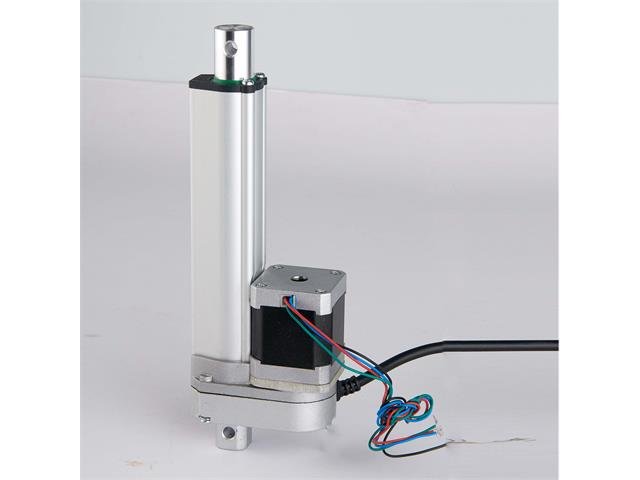

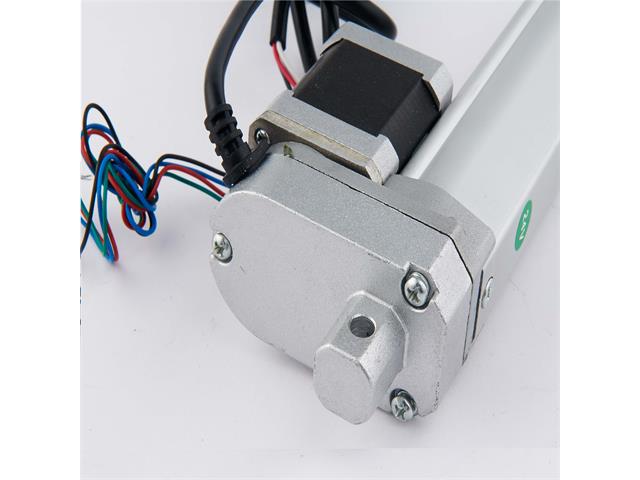

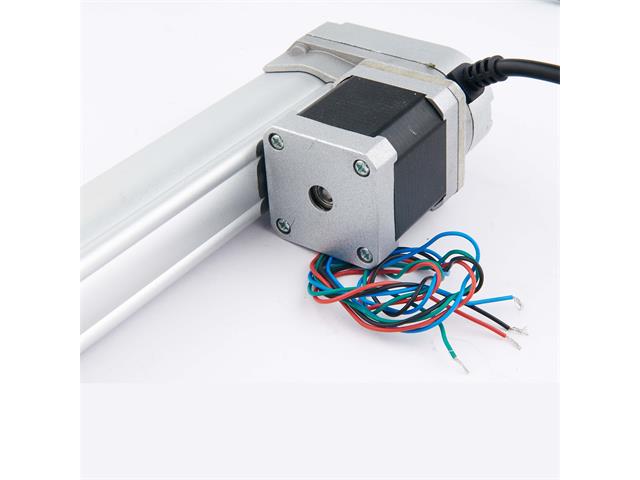

Stepper Motor Linear Actuator. Stroke 200mm. Speed 8MM/S. Load 700N. Installation Size (Retracted) 305mm. Voltage 12 – 24VDC. Protection Grade IP43. Recommended Stepper DRIVER-HKD STEPPER MOTOR DRIVER M542
Stepper Motor Linear Actuator
Specifications
Actuator
Travel or Stroke (S) Length: 200mm
Voltage: 12Vdc to 24Vdc (power supply input to servo drive)
Torque: 700N
Speed: 8mm/sec (no load)
IP43
Aluminium outer tube and stroke rod
Duty cycle: 10%
Stepper Motor
Phase: 2
Step angle: 1.8 degrees (200 steps per revolution)
Voltage: 2.8V
Current: 1.68A
Resistance: 1.65 ohms
Inductance: 2.3mH
Holding torque: 5 kg.cm
Insulation class: B
Stepper motor drive
Required, but not included
HKD STEPPER MOTOR DRIVER M542 is recommended
MODEL
STROKE (S)
INSTALLATION SIZE (L) {RETRACTED}
MAX - INSTALLATION {EXTENDED}
WEIGHT (KG)
LKT STEPPER ACTUATOR 200MM 700N
200mm
305mm
505mm
0.94kg
Additional Information
Device
Linear Actuator
Type
Stepper Motor
Enhance your automation projects with the LKT Stepper Actuator 200MM 700N. This powerful linear actuator offers a 200mm stroke and a robust 700N load capacity, ensuring precision and reliability for various applications. With a compact design and an impressive speed of 8mm/s, it’s perfect for seamless integration into your systems. Upgrade your setup with this efficient actuator and experience exceptional performance today!
