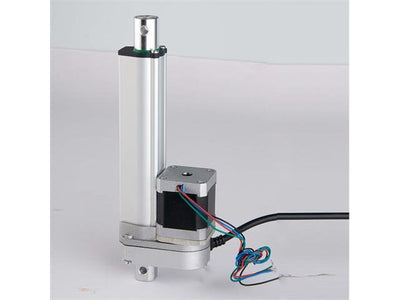

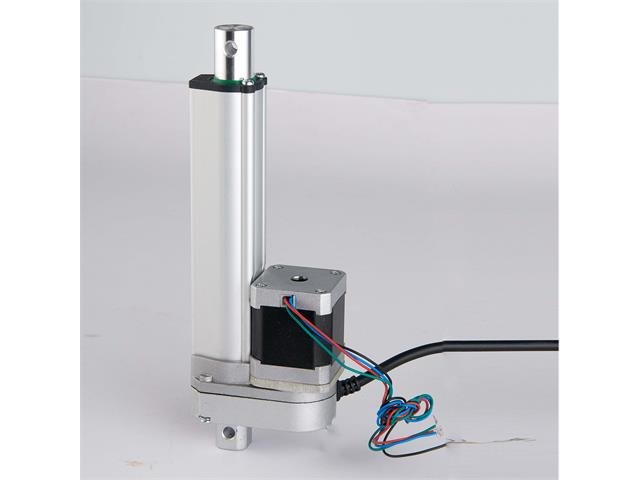

LKT STEPPER ACTUATOR 400MM 700N

Name: LKT STEPPER ACTUATOR 400MM 700N - Communica [Part No: LKT STEPPER ACTUATOR 400MM 700N]
Brand: Communica
SKU: LKT STEPPER ACTUATOR 400MM 700N
Price: 1295.65 ZAR
Availability: InStock

SKU: LKT STEPPER ACTUATOR 400MM 700N

BRAND: Communica

R 1,490.00_{(inc VAT)}
R 1,295.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Solenoids & Actuators

Category: Stepper Actuators

Stepper Motor Linear Actuator. Stroke 400mm. Speed 8mm/S. Load 700N. Installation Size (Retracted) 505mm. Voltage 12 – 24VDC. Protection Grade IP43

Stepper Motor Linear Actuator

Specifications

Actuator

Travel or Stroke (S) Length: 400mm
Voltage: 12Vdc to 24Vdc (power supply input to servo drive)
Torque: 700N
Speed: 8mm/sec (no load)
IP43

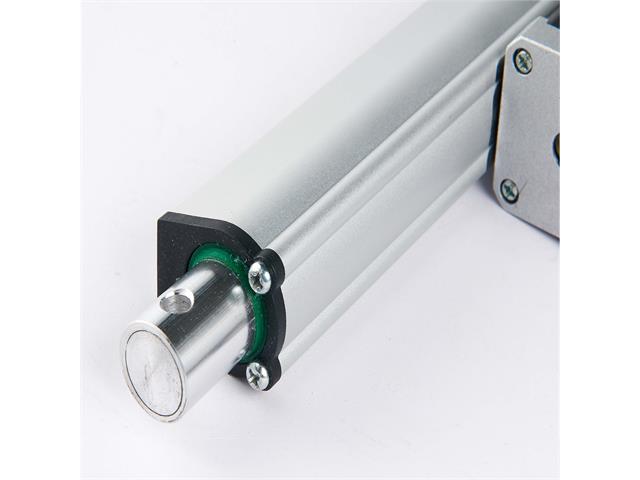

Aluminium outer tube and stroke rod
Duty cycle: 10%

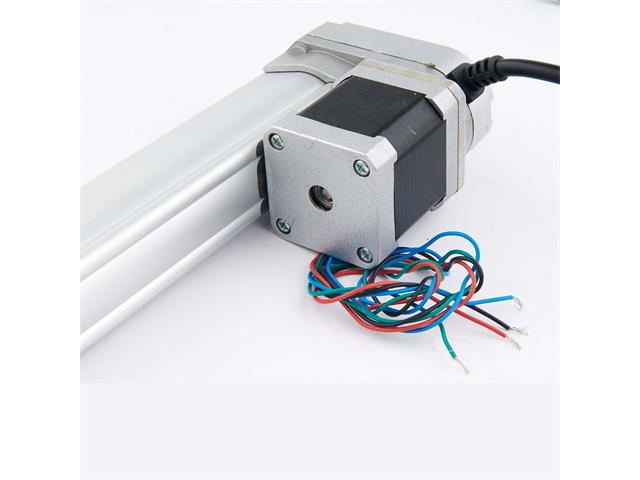

Stepper Motor

Phase: 2
Step angle: 1.8 degrees (200 steps per revolution)
Voltage: 2.8V
Current: 1.68A
Resistance: 1.65 ohms
Inductance: 2.3mH
Holding torque: 5 kg.cm
Insulation class: B

Stepper motor drive

Required, but not included
HKD STEPPER MOTOR DRIVER M542 is recommended

MODEL	STROKE (S)	INSTALLATION SIZE (L) {RETRACTED}	MAX - INSTALLATION {EXTENDED}	WEIGHT (KG)
LKT STEPPER ACTUATOR 400MM 700N	400mm	505mm	905mm	1.29kg

Additional Information

Device	Linear Actuator
Type	Stepper Motor

Upgrade your projects with the LKT Stepper Actuator 400MM 700N, featuring a robust load capacity of 700N and a smooth speed of 8mm/sec. With a compact design and durable aluminum construction, this actuator is perfect for precise linear motion in various applications. Enhance your automation solutions with reliable performance and easy installation at 12-24VDC.
