LKT STEPPER ACTUATOR 500MM 700N

Name: LKT STEPPER ACTUATOR 500MM 700N - Communica [Part No: LKT STEPPER ACTUATOR 500MM 700N]
Brand: Communica
SKU: LKT STEPPER ACTUATOR 500MM 700N
Price: 1382.61 ZAR
Availability: InStock

SKU: LKT STEPPER ACTUATOR 500MM 700N

BRAND: Communica

In Stock
R 1,590.00_{(inc VAT)}
R 1,382.61_{(ex VAT)}

Collections: Electromechanical

Type: Solenoids & Actuators

Category: Stepper Actuators

Stepper Motor Linear Actuator. Stroke 500mm. Speed 8mm/S. Load 700N. Installation Size (Retracted) 605mm. Voltage 12 – 24VDC. Protection Grade IP43. Recommended Stepper DRIVER-HKD STEPPER MOTOR DRIVER M542

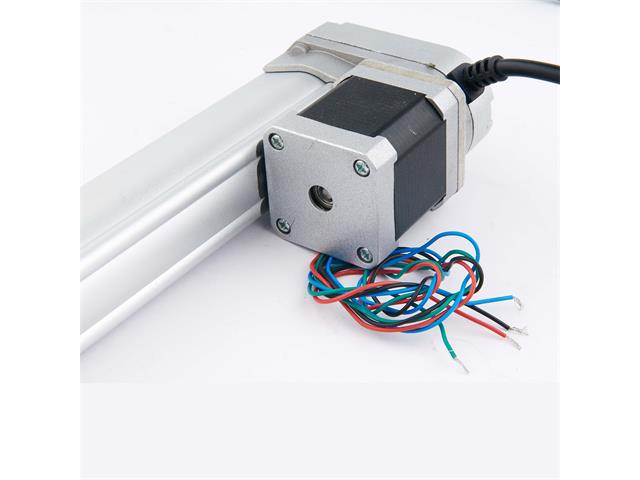

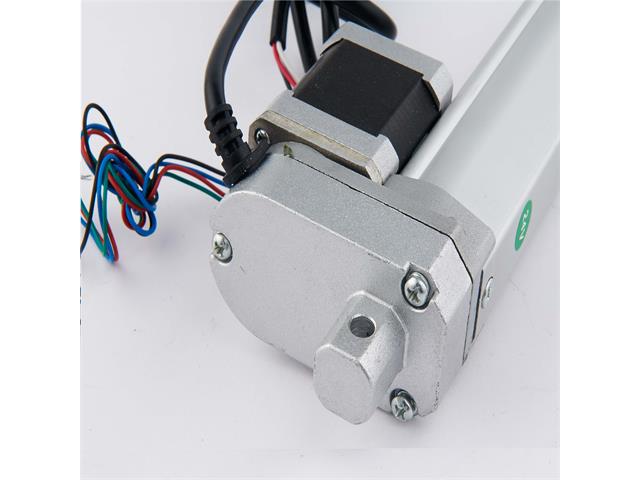

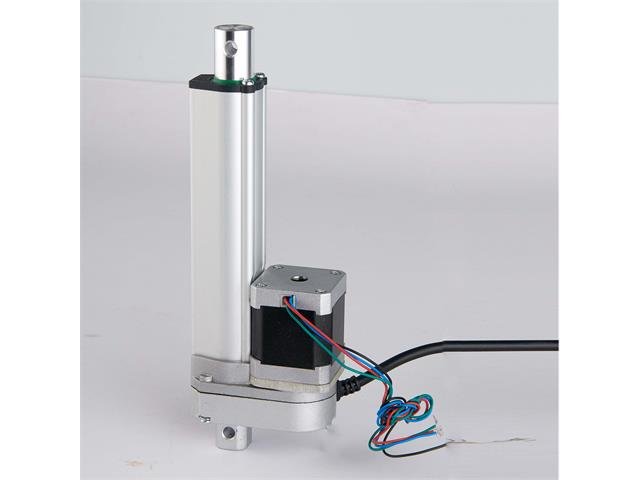

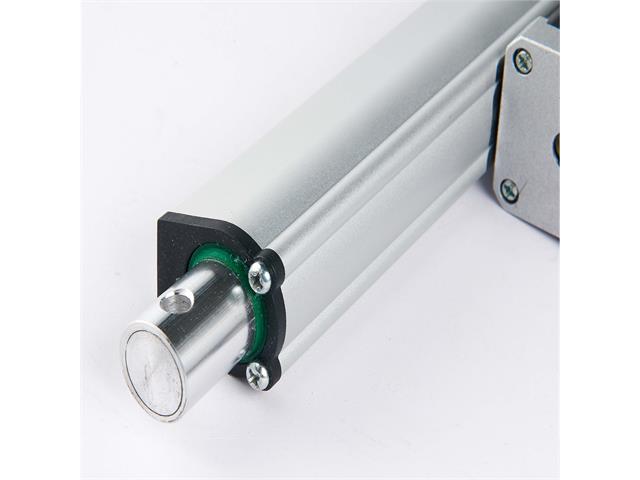

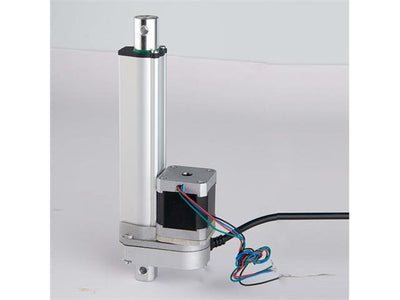

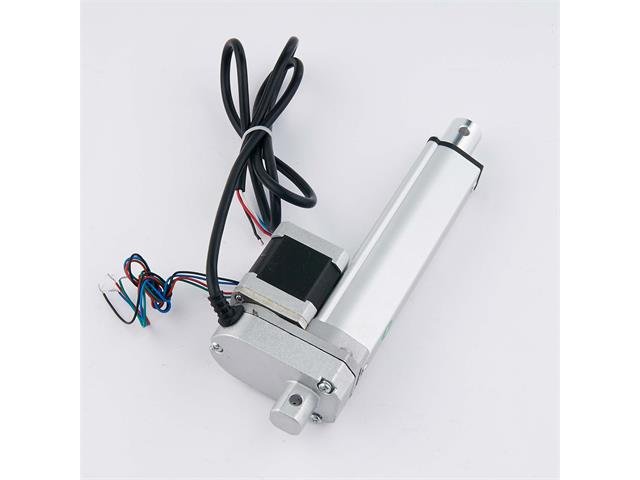

Stepper Motor Linear Actuator

Specifications

Actuator

Travel or Stroke (S) Length: 500mm
Voltage: 12Vdc to 24Vdc (power supply input to servo drive)
Torque: 700N
Speed: 8mm/sec (no load)
IP43
Aluminium outer tube and stroke rod
Duty cycle: 10%

Stepper Motor

Phase: 2
Step angle: 1.8 degrees (200 steps per revolution)
Voltage: 2.8V
Current: 1.68A
Resistance: 1.65 ohms
Inductance: 2.3mH
Holding torque: 5 kg.cm
Insulation class: B

Stepper motor drive

Required, but not included
HKD STEPPER MOTOR DRIVER M542 is recommended

MODEL	STROKE (S)	INSTALLATION SIZE (L) {RETRACTED}	MAX - INSTALLATION {EXTENDED}	WEIGHT (KG)
LKT STEPPER ACTUATOR 500MM 700N	500mm	605mm	1105mm	1.47kg

Additional Information

Device	Linear Actuator
Type	Stepper Motor
