LM150-23B48R2S

Name: LM150-23B48R2S - Communica [Part No: LM150-23B48R2S]
Brand: Mornsun
SKU: LM150-23B48R2S
Price: 412.77 ZAR
Availability: OutOfStock

SKU: LM150-23B48R2S

BRAND: Mornsun

Sold Out
R 474.69_{(inc VAT)}
R 412.77_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case New Smaller Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 48VDC @ 3,3A. Terminal Block Term. 4KVAC Isolation (Metal Case 48V - 3,3A)

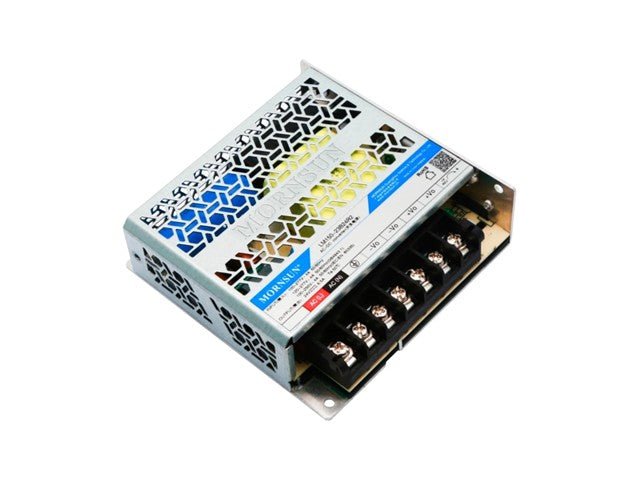

Metal Case Switch Mode Power Supply

Specifications

Output Power:	158.4 W
Input Voltage:	85 VAC to 132 VAC, 170 VAC to 264 VAC, 240 VDC to 370 VDC
Number of Outputs:	1 Output
Output Voltage-Channel 1:	48 VDC
Output Current-Channel 1:	3.3 A
Case Style:	Enclosed
Efficiency:	90 %
Industry:	Industrial
Length:	159 mm (6.26 in)
Width:	97 mm (3.819 in)
Height:	30 mm (1.181 in)
Compliance:	EN60950-1, UL60950-1
Input Frequency:	47 Hz to 63 Hz
Load Regulation:	Regulated
Mounting Style:	Chassis
Open Frame/Enclosed:	Enclosed

Additional Information

Device	Power Supply
Type	Metal \| Case \| Switch \| Mode \| Power \| Supply

Power your devices efficiently with the LM150-23B48R2S Metal Case Switch Mode Power Supply. Offering a robust output of 48VDC at 3.3A, it ensures reliable performance with 4KVAC isolation. Ideal for diverse applications, this compact power supply delivers durability and versatility for all your electrical needs.
