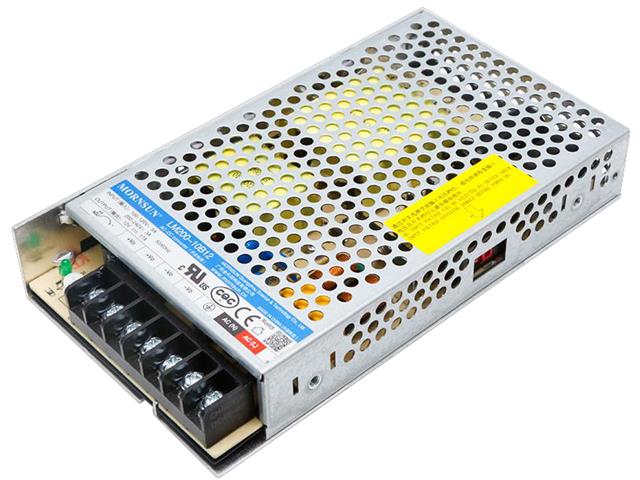

SKU: LM200-10B12

BRAND: Mornsun

Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 12VDC @ 17A. Terminal Block Term.

Small Outline Switch Mode Power Supply


  • Selectable AC input range: 90 - 132VAC/180- 264VAC
  • DC input range: 240 - 370VDC(Switch inpositionof 230)
  • Ultra low standby power consumption <0.75W@230VAC
  • Operating ambient temperature range: - 30℃to+70℃
  • High efficiency, high reliability
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Operating altitude up to 5000m Safety according to EN60335, EN61558


Additional Information

Device Power Supply
Type Small Outline | Switch Mode
Input Voltage 180 ~ 264VAC (Switch)/240 - 370VDC
Output 12VDC @ 17A
Size 179.00 x 99.00 x 30.00mm
