LM3524DM

Name: LM3524DM - Communica [Part No: LM3524DM]
Brand: Texas
SKU: LM3524DM
Price: 8.50 ZAR
Availability: InStock

SKU: LM3524DM

BRAND: Texas

R 9.78_{(inc VAT)}
R 8.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Power Management ICs

Category: IC - Voltage Regulators

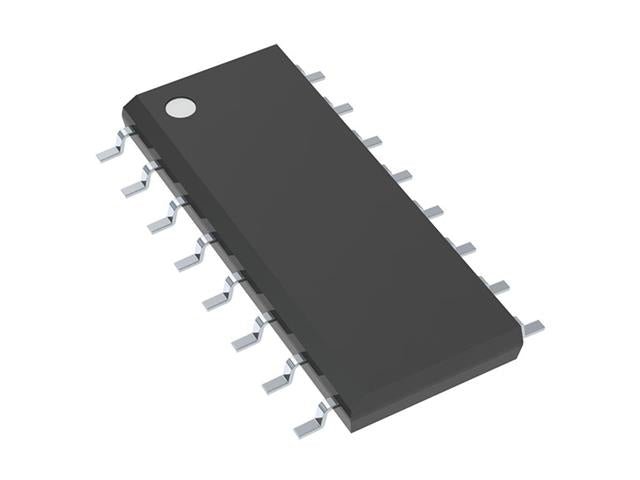

Regulating Pulse Width Modulator SOIC16

Specifications

Output Type	Transistor Driver
Function	Step-Up, Step-Down
Output Configuration	Positive or Negative
Topology	Buck, Boost
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 40V
Duty Cycle (Max)	49%
Synchronous Rectifier	No
Clock Sync	No
Control Features	Current Limit, Enable, Frequency Control
Operating Temperature	0°C ~ 125°C (TJ)
Mounting Type	Surface Mount

Downloads

Datasheet - LM3524DM

Additional Information

Device

IC

Discover the LM3524DM Regulating Pulse Width Modulator, designed for efficient transistor driving in step-up and step-down applications. With a versatile output configuration and a wide supply voltage range of 8V to 40V, this surface-mount IC ensures reliable performance and precise control, making it an ideal choice for your electronic projects. Enhance your designs with this powerful, compact solution that operates effectively from 0°C to 125°C.
