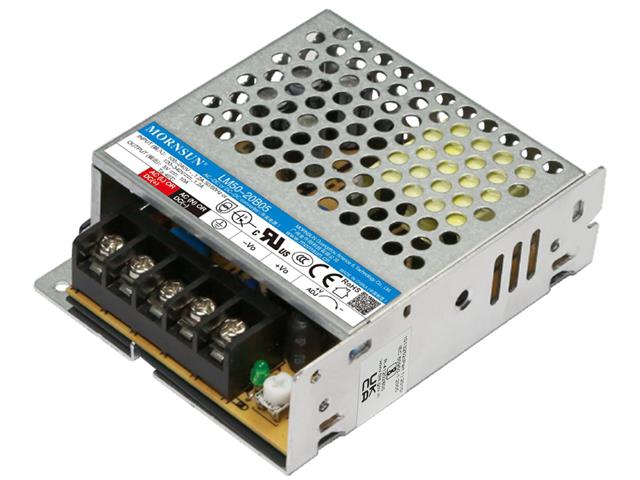

LM50-23B24R2

Name: LM50-23B24R2 - Communica [Part No: LM50-23B24R2]
Brand: Mornsun
SKU: LM50-23B24R2
Price: 244.04 ZAR
Availability: InStock

SKU: LM50-23B24R2

BRAND: Mornsun

R 280.65_{(inc VAT)}
R 244.04_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case Small Outline Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 24VDC @ 2,2A. Terminal Block Term. 4KVAC Isolation

Small Outline Switch Mode Power Supply

Feature

Universal 85 - 264VAC or 120 - 370VDC input voltage
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -30℃ to +70℃
Low standby power consumption, high efficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltage
protection
Over-voltage class Ⅲ (designed to meet EN61558)
Operating altitude up to 5000m

Additional Information

Device	Power Supply
Type	Small Outline \| Switch Mode
Input Voltage	85 ~ 305VAC/120 - 430VDC
Output	24VDC @ 2,2A
Size	99.00 x 82.00 x 30.00 mm

The LM50-23B24R2 is a high-efficiency switch mode power supply, delivering 24VDC at 2.2A from a versatile input range of 85-305VAC or 120-430VDC. With exceptional I/O isolation and robust protection features, it ensures reliable performance in temperatures from -30℃ to +70℃, making it ideal for diverse applications. Upgrade your power solution with this compact, reliable, and energy-efficient supply for superior performance.
