SKU: LMF150-23B48

BRAND: Mornsun

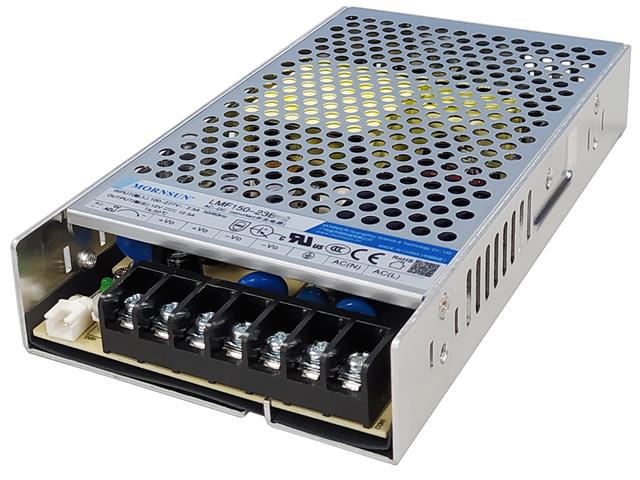

Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 305VAC/120 - 430VDC. Output 48VDC @ 3,2A. 4KVAC Isolation

Metal Case Switch Mode Power Supply


  • Universal 85 - 305V AC or 120 - 430VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range: -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current (Built-in constant
    current limiting circuit), over-voltage,
    over-temperature protection
  • Remote ON-OFF control
  • UL/EN/IEC62368, GB4943 safety approved
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

Additional Information

Device Power Supply
Type Metal Case | Switch Mode
Input Voltage 85 ~ 305VAC/120 - 430VDC
Output 48VDC @ 3,2A
Size 179.00 x 99.00 x 30.00mm
