LMF75-20B12

SKU: LMF75-20B12

BRAND: Mornsun

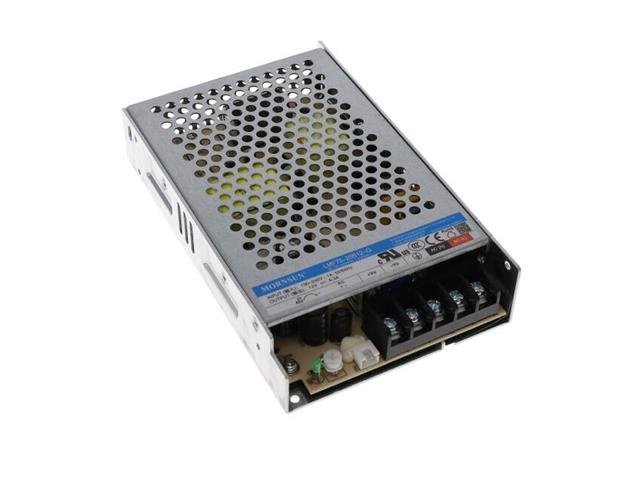

Metal Case Switch Mode Power Supply with Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 12VDC @ 6,3A. 4KVAC Isolation

Metal Case Switch Mode Power Supply

Feature

  • Universal 85 - 264V AC or 120 - 370VDC Input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -25℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • High efficiency, high reliability
  • Output short circuit, over-current, over-voltage,
    over-temperature protection (Built-in constant current
    limiting circuit)
  • Remote ON-OFF control
  • Safety according to IEC/EN/UL62368, EN60335, EN61558,
    GB4943
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Withstand 300VAC surge input for 5s
  • Emissions meets CISPR32/EN55032 CLASS B without
    extra components

Additional Information

Device Power Supply
Type Metal Case | Switch Mode
Input Voltage 85 ~ 264VAC/120 - 370VDC
Output 12VDC @ 6,3A
Size 159.00 x 97.00 x 30.00 mm
