2DI 2DO Wireless RS485 Modbus RTU c/w Magnetic Base Antenna. Power supply: 9- 30VDC. Power Output 1W. Baud Rate 1200bp/s 433MHz DIN Rail Mount
2DI 2DO Wireless RS485 Modbus
Specifications
Product Type: Wireless Industrial I/O Module / Wireless PLCDigital Inputs: 2 isolated digital inputsRelay Outputs: 2 isolated relay outputsOutput Contact Rating: 5 A @ 250 V AC / 5 A @ 30 V DCCommunication: RS485Protocol: Modbus RTUWireless Networking: Point-to-point and point-to-multipointRF Frequency: 433 MHz (400/450/470 MHz versions available)RF Power: 1 W; 100 mW version also availableControl Distance: Up to 3 km line-of-sight; 1 km version availablePower Supply: 9–30 V DCBaud Rate: 1200 bpsReceiving Sensitivity: -123 dBm @ 1200 bps; -118 dBm @ 9600 bpsTransmit Current: <600 mAReceiving Current: <50 mAAntenna Connector: SMAAntenna: 1.5 m cable antennaChannels: 16 selectable channelsDimensions: 115 × 90 × 40 mmOperating Temperature: -35 °C to +75 °CMounting: Standard industrial DIN railProgramming: No programming required for transparent I/O operationTypical Applications: Pump control, water-level monitoring, motor control, valve control, lighting, conveyors, PLC activation and SCADA systems.
Additional Information
| Device |
Modbus |
| Type |
2DI | 2DO | Wireless | RS485 | Modbus |

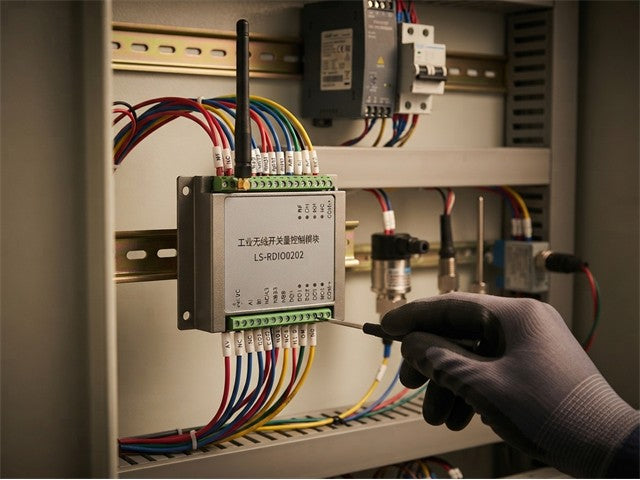

Enhance your industrial automation with the LS-RDIO0202 Wireless RS485 Modbus RTU Module. Featuring 2 isolated digital inputs and 2 relay outputs, this versatile device offers seamless communication over distances up to 3 km. Designed for easy integration with PLCs and SCADA systems, it operates efficiently between -35 °C to +75 °C, ensuring reliability in any environment. Perfect for pump control, water-level monitoring, and more, elevate your operations today!
