LS-RDIO0404

Name: LS-RDIO0404 - Communica [Part No: LS-RDIO0404]
Brand: Lensen
SKU: LS-RDIO0404
Price: 3150 ZAR
Availability: InStock

SKU: LS-RDIO0404

BRAND: Lensen

R 3,622.50_{(inc VAT)}
R 3,150.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Industrial Automation

Category: Wireless RS485 Modbus

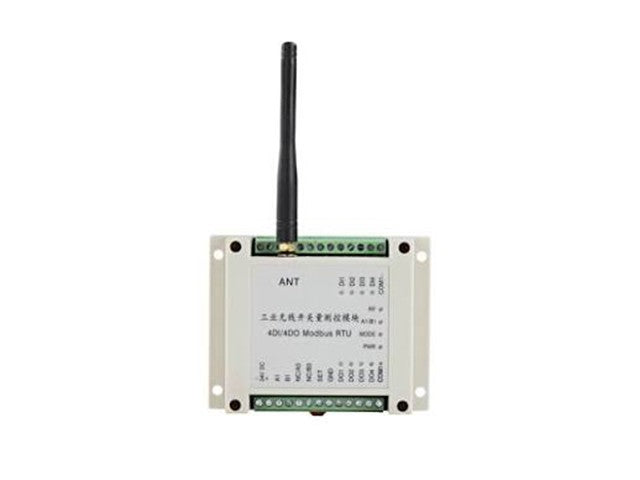

4DI 4DO Wireless RS485 Modbus RTU c/w Magnetic Base Antenna. Power supply: 9- 30VDC. Power Output 1W. Baud Rate 1200bp/s 433MHz DIN Rail Mount

4DI 4DO Wireless RS485 Modbus

Specifications

Product Type: Wireless Industrial I/O Module
Function: Wireless digital input/output control and monitoring
Digital Inputs: 4 isolated digital inputs
Relay Outputs: 4 isolated relay outputs
Output Contact Rating: 5 A @ 250 V AC / 5 A @ 30 V DC
Communication: RS485
Protocol: Modbus RTU
Networking: Point-to-point and point-to-multipoint
Power Supply: 9–30 V DC
RF Power: 1 W or 100 mW versions
Typical Control Distance: Up to 3 km line-of-sight for the 1 W version; approximately 1 km for the 100 mW version
Default Baud Rate: 2400 bps
Receiver Sensitivity: -123 dBm @ 1200 bps; approximately -118 dBm @ 9600 bps
Frequency: 433 MHz; other frequency bands available depending on version
Channels: 16, selectable by DIP switch
Antenna Connector: SMA
Antenna: 1.5 m cable antenna
Dimensions: 115 × 90 × 40 mm
Mounting: Standard industrial guide rail
Operating Temperature: Approximately -35 °C to +75 °C
Applications: Pump control, tank-level monitoring, motor control, valve control, lighting, conveyor systems, PLC activation and SCADA
Internet Required: No
Programming: No programming required for basic transparent I/O operation

Additional Information

Device	Modbus
Type	4DI \| 4DO \| Wireless \| RS485 \| Modbus

Unlock seamless industrial automation with the LS-RDIO0404 Wireless RS485 Modbus RTU module. Featuring 4 digital inputs and 4 relay outputs, this versatile device offers reliable control and monitoring over distances up to 3 km. With easy DIN rail mounting and no programming required, it's perfect for applications like pump control and tank-level monitoring. Enhance your operational efficiency today!
