LS0001

Name: LS0001 - Communica [Part No: LS0001]
Brand: Ema
SKU: LS0001
Price: 245 ZAR
Availability: OutOfStock

SKU: LS0001

BRAND: Ema

Sold Out
R 281.75_{(inc VAT)}
R 245.00_{(ex VAT)}

Collections: Sensors

Type: Flow Sensors

Category: Float Switch

Float Switch - M18 Thread Liquid level up to 80°C - SPDT N/O & N/C - 0,5A/240VAC/VDC IP68

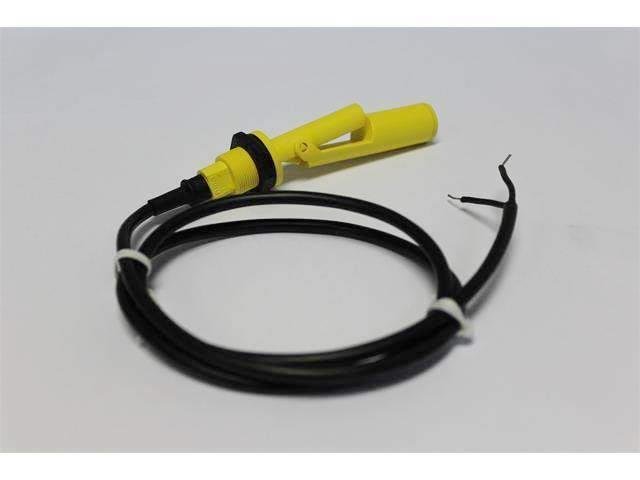

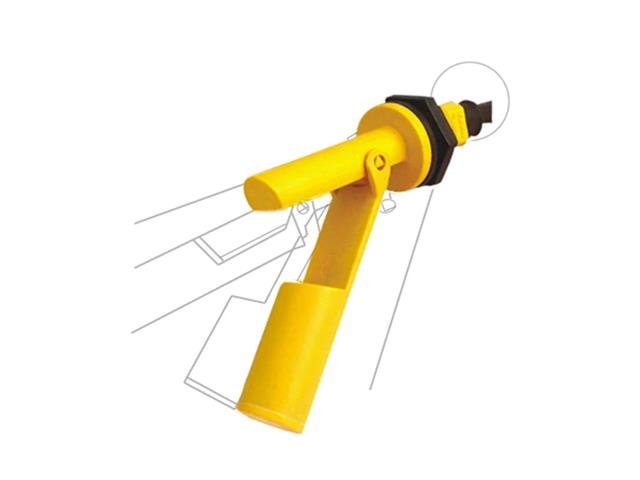

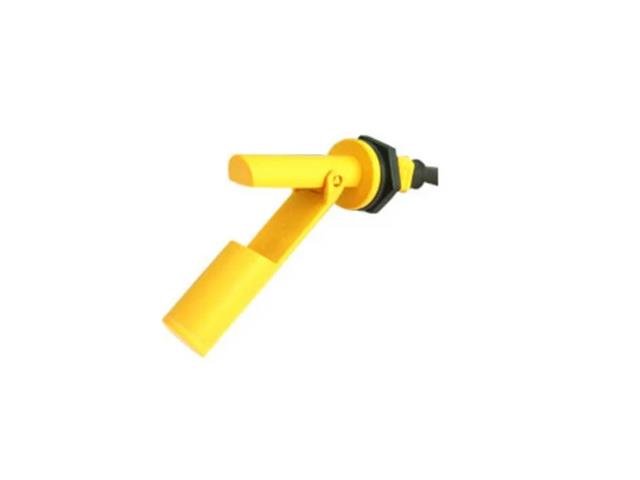

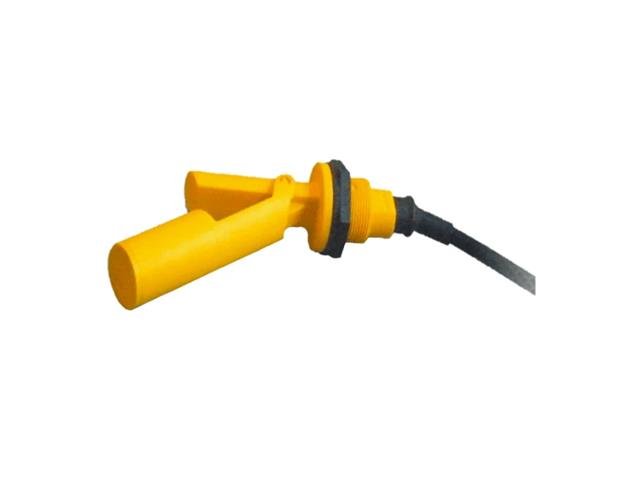

M18 Liquid Float Switch

Overview

LS seriess is featured for concise structure, delicate design, durable operations, and perfect function. They are extensively installed in the fuel tanks, oil-pressure equipments,chemical and cooling vessel, and etc. Furthermore, they are mostly used to sense substance such as water, oil, and chemicals. chemicals

Specifications

Type : Standard
Sensing medium : Liquid
Electrical Design : DC/AD
Output : NO/NC
Operating Voltage : Max.240V AC/DC
Current Rating 0.5A (240V AC/DC)
Socket : M18 Thread
Capacity : 70W
Sensing Degree : ±30°
Stotage Humidity : 20%~70%
Operating Humidity : 20%~70%
Operating Temparature : -20°C~80°C
Ambient Temparature : -20°C~80°C
Ambient Pressure : 10 bar
Contact Resistance : 80 Ω
Housing Material PBT+30%GF
Connection : 1*PVC Cable
Protection classification IP68
Certification : CE, RoHS

Downloads

Datasheet - LS0001

Additional Information

Device	Float Switch
Type	Liquid \| M18 \| IP68
