LS05-13B03R3 - Power Supplies -

LS05-13B03R3

SKU: LS05-13B03R3

BRAND: Mornsun


In Stock
R 48.30 (inc VAT)
R 42.00 (ex VAT)

Collections: Power

Type: Power Supplies

Category: PCB Mount Power Supplies, Switch Mode Power Supplies

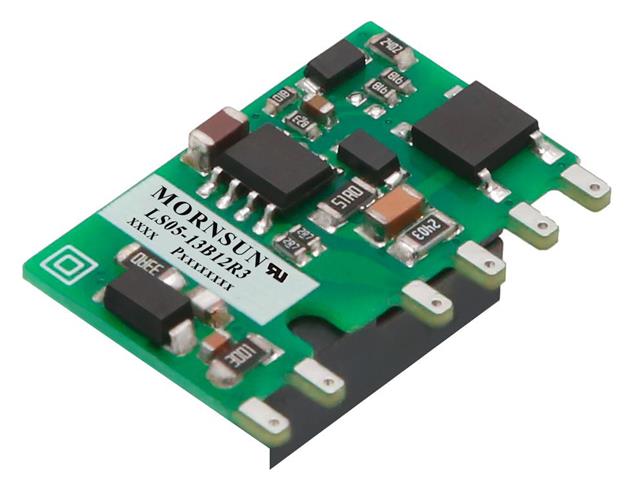

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/70 - 430 VDC. Output 3,3VDC @ 1A

Open Frame Miniature Vertical PCB Switch Mode Power Supply

Feature

  • Ultra-wide 85 - 305VAC and 70 - 430VDC input voltage range
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃ to +85℃
  • Multi application, flexible layout
  • Compact size, high power density, green power
  • Controllable life and adjustable cost
  • No-load power consumption 0.1W
  • Output short circuit, over-current protection
  • Designed to meet IEC/EN/UL62368, IEC/EN61558, IEC/EN60335 standards
  • IEC/EN/UL62368 safety approval (LS05-13BxxR3 series)
  • EN62368 safety approval (LS05-13BxxR3-F series)

Downloads

Additional Information

Device AC/DC Converter
Type Open Frame | Miniature Vertical | PCB | Switch Mode
Input Voltage 85 ~ 305 VAC/70 - 430 VDC
Output 3,3VDC @ 1A
Size 26.40 x 14.73 x 11.00 mm
