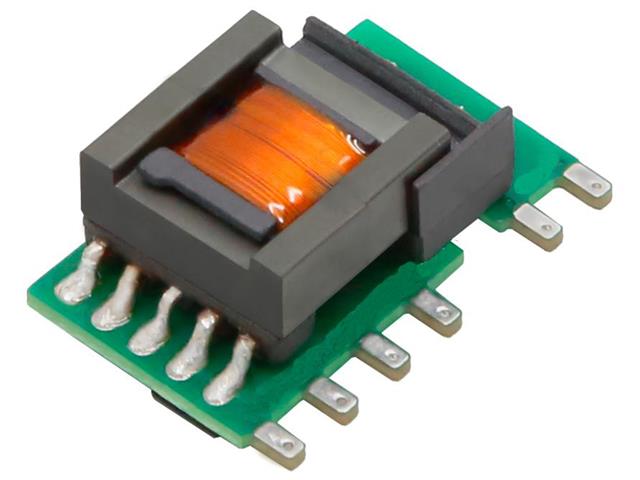

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/70 - 430 VDC. Output 5VDC @ 1A
Open Frame Miniature Vertical PCB Switch Mode Power Supply
Overview
LS05-13BxxR3(-F) series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input rangeacceptingeither AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitablefor industrial
control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t havehighrequirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Referenceof thisdatasheet.
Feature
- Ultra-wide 85 - 305VAC and 70 - 430VDCinput voltagerange
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range -40℃to+85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- Controllable life and adjustable cost
- No-load power consumption 0.1W
- Output short circuit, over-current protection
- Designed to meet IEC/EN/UL62368, IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval (LS05-13BxxR3series)
- EN62368 safety approval (LS05-13BxxR3-F series)
Downloads
Additional Information
| Device |
AC/DC Converter |
| Type |
Open Frame | Miniature Vertical | PCB | Switch Mode |
| Size |
26.40 x 14.73 x 11.00 mm |
Discover the LS05-13B05R3 Open Frame Miniature Vertical PCB Switch Mode Power Supply, designed for efficiency and reliability. With a wide input voltage range of 85-305VAC and 70-430VDC, this compact power supply is perfect for industrial control and smart home applications. Enjoy low power consumption, high power density, and built-in protection features, ensuring long-lasting performance in any environment.
