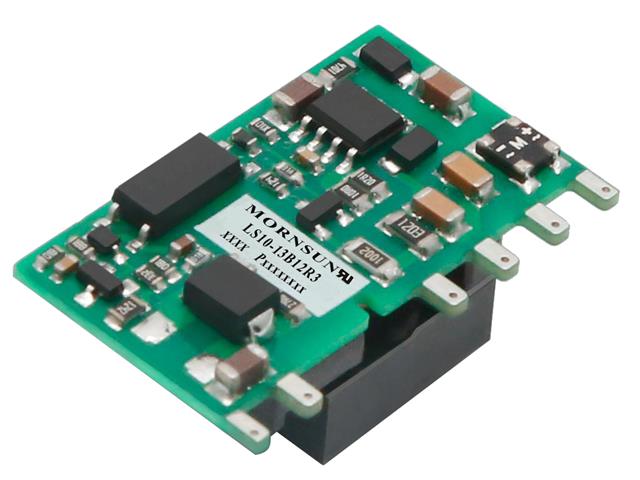

LS10-13B09R3

SKU: LS10-13B09R3

BRAND: Mornsun


Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 9VDC @ 1,1A

Open Frame | Miniature Vertical | PCB | Switch Mode

Feature

  • Ultra-wide 85 - 305VAC and 100 - 430VDCinput voltagerange
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range -40℃to+85℃
  • Multi application, flexible layout
  • Compact size, high power density, green power
  • No-load power consumption as low as 0.1W
  • Output short circuit, over-current, over-voltage protection
  • Designed to meet IEC/EN61558, IEC/EN60335 standards
  • IEC/EN/UL62368 safety approval

Downloads

Additional Information

Device AC/DC Converter
Type Open Frame | Miniature Vertical | PCB | Switch Mode
Input Voltage 85 ~ 305 VAC/100 - 430 VDC
Output 9VDC @ 1,1A
Size 32.00 x 17.20 x 15.05 mm
