LS14250CNA

SKU: LS14250CNA

BRAND: Saft

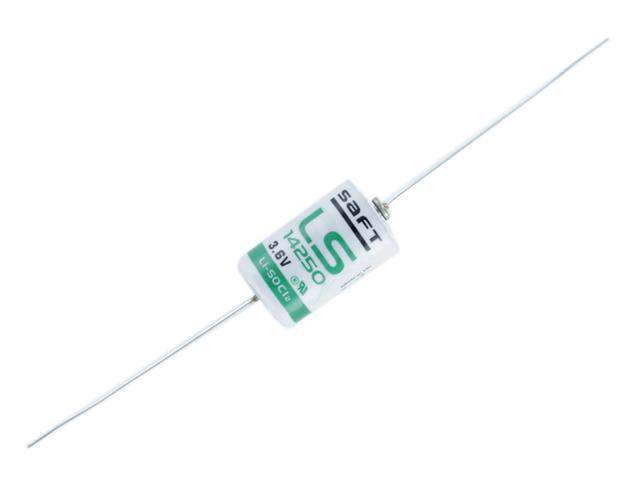

3.6V 1200mAH Lithium Battery Half AA with leads

Overview



SAFT Lithium Non-rechargeable Batteries - LS

These batteries are not like typical batteries, they have a nominal voltage rating of 3.6 V designed for use in applications where a device is used for a long period of time such as utility metering, security and alarms. LS batteries use lithium-thionyl chloride so they have a high energy density, low discharge rate, ideal for lengthy storage periods plus they are fully compliant with IEC60086-4 and IEC60079-11 safety standards.

Why choose these batteries?

Saft LS lithium batteries are 3.6 V rated which is considerably higher than commonly used batteries. They are applicable for equipment or instruments designed for this rating otherwise damage will ensue. Saft LS lithium batteries are non-rechargeable and should not be recharged.

  • Lithium batteries what are the advantages?
  • The nominal voltage of 3.6 V, greater than conventional cells
  • Wide temperature range −60゚C to +85゚C
  • High energy density, the highest of any primary battery

Features



  • Operating voltage: 3.6 V
  • Bobbin construction
  • Low self-discharge for extended life
  • Operating temperature: - 60°C to + 85°C
  • Non-flammable
  • Resistance to corrosion
  • Low magnetic signature
  • Size options; 1/ 2 AA, 2/ 3 AA, C and D

Specification



Electrochemical System Lithium
Nominal Voltage 3.6V
Nominal Capacity 1200mAH
Size Half AA
Rechargeable False
