LS15-13B12SS - Power Supplies -

LS15-13B12SS

SKU: LS15-13B12SS

BRAND: Mornsun



R 138.58 (inc VAT)
R 120.50 (ex VAT)

🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

Collections: Power

Type: Power Supplies

Category: PCB Mount Power Supplies, Switch Mode Power Supplies

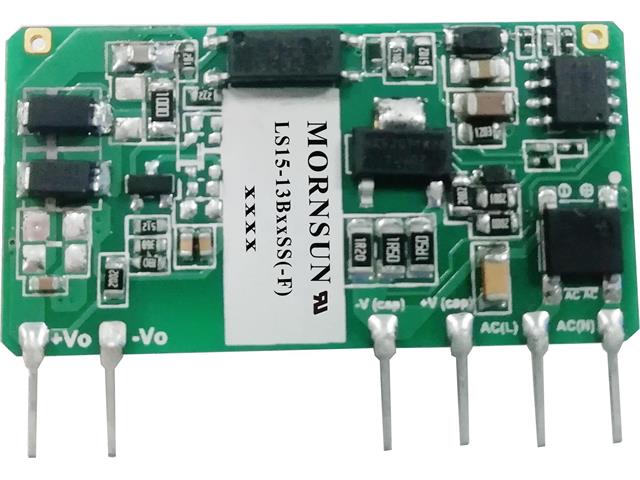

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 12VDC @ 1,25A

Vertical PCB Switch Mode Power Supply

Feature

  • Universal 85-305VAC or 100-430VDC input voltage
  • Accepts AC or DC input(dual-use of same terminal)
  • Operating ambient temperature range: -40℃ to +85℃
  • Small size, high power density
  • Low power consumption, green power
  • Output short circuit, over-current, over-voltage protection
  • Regulated output, low ripple & noise
  • Design to meet IEC/EN60335 standards
    IEC/EN/UL62368 safety approval

Downloads

Additional Information

Device Power Supply
Type Vertical PCB | Switch Mode
Input Voltage 85 ~ 305 VAC/100 - 430 VDC
Output 12VDC @ 1,25A
Size 44.50 x 24.00 x 15.00 mm
Discover the LS15-13B12SS Miniature Vertical PCB Switch Mode Power Supply, designed for versatility with universal input voltage and dual-use terminals. Operating efficiently from -40℃ to +85℃, this compact power supply offers reliable 12VDC output with built-in protections, ensuring safety and durability. Ideal for your electronic projects, it combines high power density with low power consumption for a greener solution.
