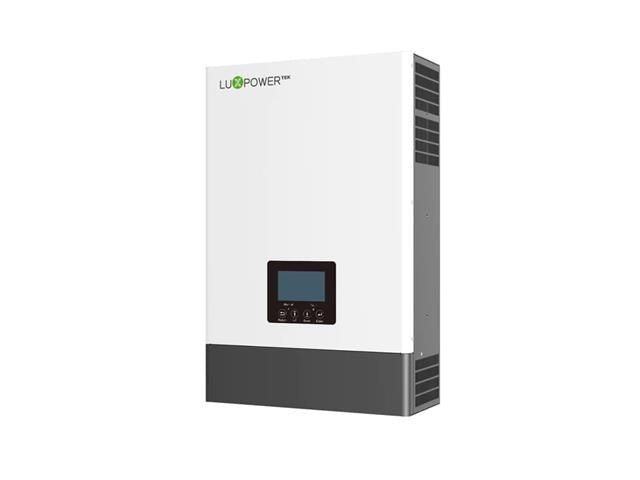

LUXPOWER ECO Hybrid Pure Sine Wave Inverter 5KW 48VDC, 2 x MPPT Trackers, Max PV OCV:480VDC, MPPT Voltage Range:120~385VDC, Max PV PWR:3200W, Max Solar Chagre Current:100A, Max AC Charge Current:60A, Includes WiFi Dongle, 330x504x135mm, 14kg, IP20
Hybrid Pure Sine Wave Inverter
Specifications
Output
- Rated Power: 5000W
- Parallel Supported: Yes
- Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
- Normal Output Frequency: 50Hz / 60Hz
- Surge Power: 10000VA
- Switch Time: 10ms
- Wave Form: Pure Sine Wave
Battery
- Battery Type Supported: Lithium / Lead-Acid
- Normal Voltage: 51.2VDC / 48VDC
- Maximum Charging Voltage: 59VDC
Solar
- Maximum PV Power: 3200W / 3200W
- Number of MPP Trackers: 2
- Maximum PV Open Circuit Voltage: 480VDC
- MPPT Voltage Range: 100VDC – 385VDC
- Maximum Solar Charge Current: 100A
- Maximum Solar Input Current: 13A / 13A
Grid
- Normal Voltage: 230VAC
- AC Voltage Range: 110VAC-280VAC
- Maximum Charge Current: 60A
- Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
- Ingress Protection: IP20
- Relative Humidity: 5% to 95% (Non Condensing)
- Operating Temperature Range: 0°C to +50°C
- Storage Temperature: -15°C to +60°C
- Communication: CAN / RS485/ WIFI / GPRS
Downloads
Additional Information
| Device |
Inverter |
| Type |
Hybrid | Pure Sine Wave |
Experience reliable power with the LUXPOWER SNA5000WPV Hybrid Pure Sine Wave Inverter. Offering 5000W output and dual MPPT trackers, it efficiently harnesses solar energy, ensuring optimal performance and energy savings for your home or business. Its advanced features, including WiFi connectivity and support for lithium and lead-acid batteries, provide seamless integration and monitoring. Upgrade your energy system today for a sustainable and efficient future!
