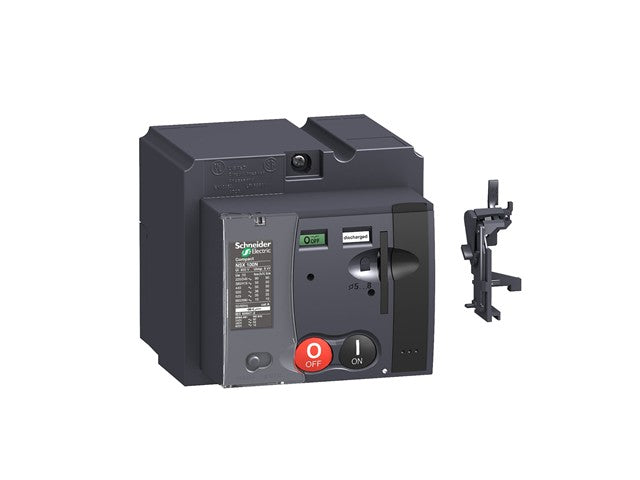

Electric motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. This motor mechanism helps the circuit breaker provide a high mechanical endurance as well as positive opening or closing operations. Double insulation of the front face and all indications are clearly visible and accessible, and the unit is padlockable.

The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500VA. Compatible with - ComPacT new generation ComPacT NSX100 new generation, ComPacT new generation ComPacT NSX160 new generation, ComPact ComPacT NSX DC new generation NSX100 DC, ComPact ComPacT NSX DC new generation NSX160 DC.

• Standard Control type
• Control circuit voltage 208 - 277 V AC 60 Hz, 220 - 240 V AC 50/60 Hz
• Fixed mounting mode
• Circuit breaker frame rated current 160 A, 100 A
• Control signal - Impulse Maintained
• Response time < 700 ms open < 80 ms closed
• Maximum operating frequency 4 per minute
• Power consumption in 500 VA closing/opening
• Padlocking in OFF position 1 to 3 padlocks
• For Use With ComPacT, ComPact Compact NSX250 DC, PowerPact
