M12-M08X-T/RJ45-T10.-PUR-CAT.6A
SKU: M12-M08X-T/RJ45-T10.-PUR-CAT.6A
BRAND: Wain
R 1,818.76 (inc VAT) R 1,581.53 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

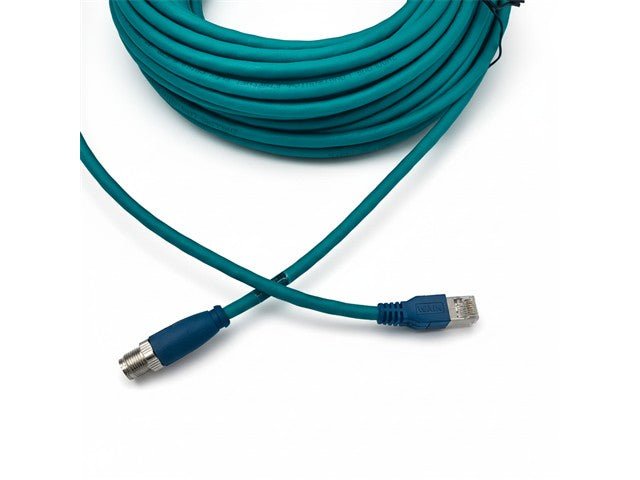

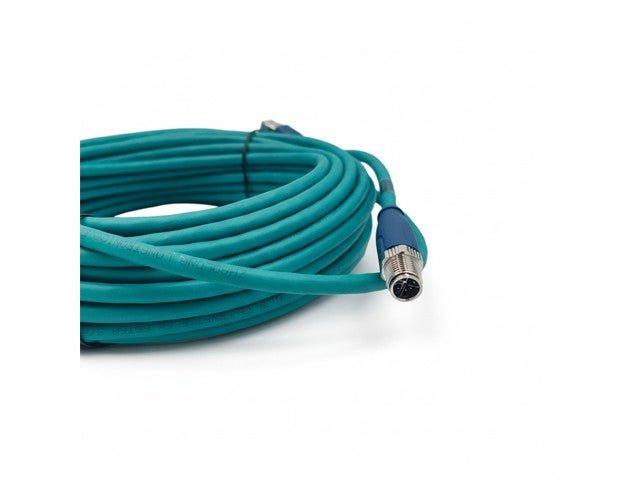

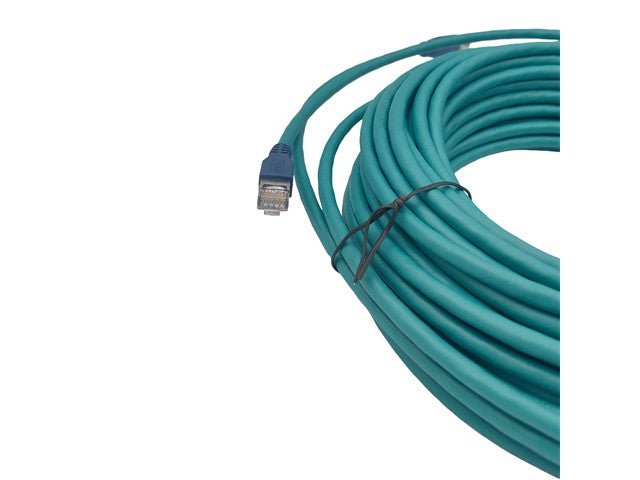

Cordset M12 X Code Male 8 Pole - RJ45 10M PUR CAT6a
Cordset M12 X Code Male 8 Pole
Specifications
nsulation materials: PE
Series: M12
Male/female: Male connector
Encoding type: X coding
Number of connector contacts: 8
Cable outlet: Straight
Shield: Yes
Rated current: 0.5A
Rated voltage: 50V AC, 60V DC
Rated pulse voltage: 0.8KV
Contact resistance: ≤10mΩ
Wire gauge (mm²): 0.14mm²
Wire gauge (AWG): 26 AWG
Insulation material group: Ⅱ
Overvoltage protection level: Category III
Housing material: TPE
Seals: Fluororubber
Contact material: Copper alloy
Contact electroplating material: Gold-plated
Locking method: Thread M12×1
Connection method: PUR Cat.6a
Mating cycles: ≥500
Working temperature: -25℃...+85℃
Salt spray level: 72h
Protection rating: IP67
Flame retardant rating as per UL94: V0
Class of pollution: 3
Altitude: 2000m
Sheath material: PUR
Cable type: Cat.6a
Sheath color: Blue
Cable length: 5m
Woven material: Copper, tin-plated
Insulation materials: PA
Conductor material: Copper
Wire gauge (mm): 7/0.16
Cable flame classifications: VW-1
Downloads
Additional Information
Device
RJ45 10M PUR CAT6a
Type
Cordset | M12 X Code | Male | 8 | Pole
Upgrade your connectivity with the M12-M08X-T/RJ45-T10.-PUR-CAT.6A cordset. This durable, high-performance cable features a robust M12 male connector and supports Cat.6a standards for fast, reliable data transmission. With its IP67 protection rating and flexible PUR sheath, it’s perfect for harsh environments. Enjoy seamless connections and peace of mind with this essential networking solution.
