M17-FC04-CCT-D9.5-SH

Name: M17-FC04-CCT-D9.5-SH - Communica [Part No: M17-FC04-CCT-D9.5-SH]
Brand: Wain
SKU: M17-FC04-CCT-D9.5-SH
Price: 389.39 ZAR
Availability: OutOfStock

SKU: M17-FC04-CCT-D9.5-SH

BRAND: Wain

Sold Out
R 447.80_{(inc VAT)}
R 389.39_{(ex VAT)}

Collections: Connectors

Type: Circular Connectors

Category: M17 Power Connectors

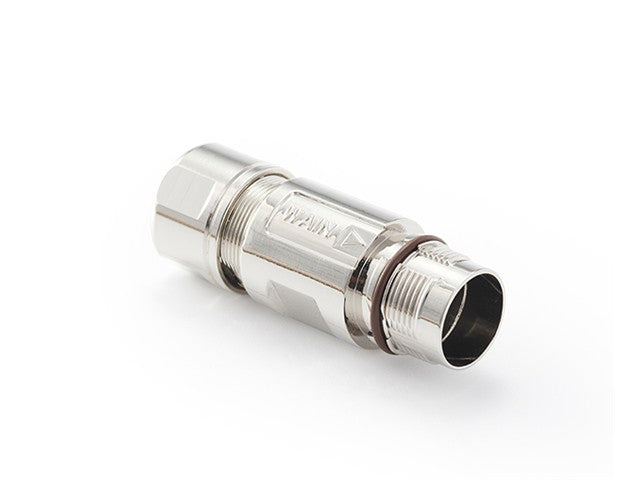

Circular Connector M17 Power. With Female Crimp Insert - 4 POLE Without Contacts - Cable entry 6 - 9mm

Circular Connector

Specifications

Product Category: Cable Side Connector
Connector Gender: Female
Number of Contacts: 3
Cable Outlet: Straight
Cable Outlet Diameter: 6–9 mm
Shielding: Yes
Rated Current: 20 A
Rated Voltage: 630 V
Rated Impulse Voltage: 6 kV
Contact Resistance: ≤5 mΩ
Wire Size: 0.35–2.5 mm²
Wire Gauge: 22–14 AWG
Housing Material:
- Copper Alloy
- Zinc Alloy
Surface Finish: Nickel-Plated
Insulation Material: PBT
Seal Material: FPM
Contact Material: Copper Alloy
Contact Plating: Gold-Plated
Locking Method: M17 × 1 Thread
Connection Method: Crimp Connection
Mating Cycles: ≥500
Operating Temperature: -40°C to +130°C
Salt Spray Resistance: 72 Hours
Protection Rating: IP67
Flame Retardant Rating: UL94 V-0
Pollution Degree: 3
Maximum Operating Altitude: 2,000 m

Downloads

Datasheet

Additional Information

Device	Connector
Type	Circular \| Connector \| M17 \| Power

Discover the M17-FC04-CCT-D9.5-SH circular power connector, designed for durability and reliability in demanding environments. With a robust female crimp insert and an IP67 rating, it ensures secure connections in various applications. Perfect for efficient power transmission, it supports up to 20 A and withstands extreme temperatures from -40°C to +130°C. Upgrade your setup with this high-quality connector today!
