M5135P

Name: M5135P - Communica [Part No: M5135P]
Brand: Communica
SKU: M5135P
Price: 6.51 ZAR
Availability: InStock

SKU: M5135P

BRAND: Communica

R 7.49_{(inc VAT)}
R 6.51_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Audio & Video ICs

Category: TV Signal Processors / Video Processors

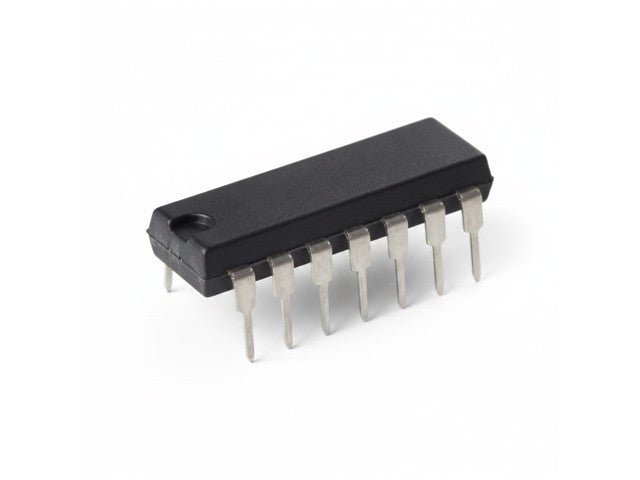

TV AFT 14-DIP

Specifications

Device Type: Linear Integrated Circuit for TV Tuner AFC/AFT Applications

Function

Designed for TV tuner Automatic Frequency Tuning (AFT)
Used in television IF (Intermediate Frequency) systems
Provides frequency error detection and tuning correction signals for TV receivers.

Internal Circuit Blocks

RF Amplifier / Limiter
Phase Detector
Differential DC Amplifier
Bias Regulator Circuit
Zener-Diode Voltage Regulator.

Electrical Characteristics

Recommended Supply Voltage: 18 V
External series resistor typically 510 Ω
Input Sensitivity: 18 mVrms (typical)
Approximately 20 dB higher sensitivity than the earlier M5134P.

Additional Information

Device

IC

Upgrade your TV tuning experience with the M5135P Linear Integrated Circuit, designed for superior Automatic Frequency Tuning. With enhanced sensitivity and reliable correction signals, this IC ensures crystal-clear reception for all your favorite channels. Perfect for TV tuner applications, it offers exceptional performance and ease of integration.
