Overview

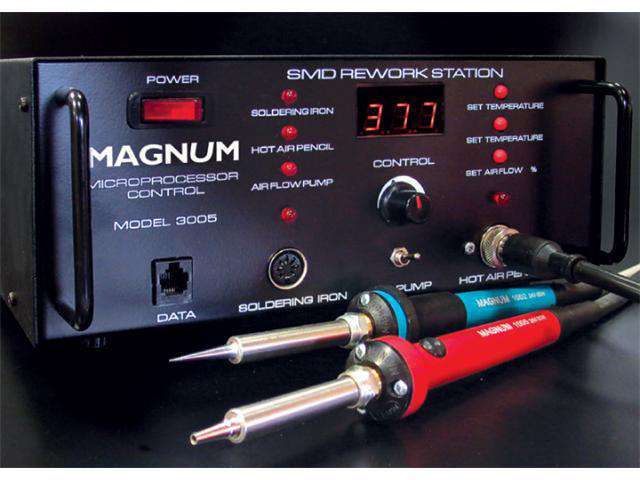

The 3005 temperature-controlled station is precision engineered to perform SMD rework and repair. The Hot Air Pencil is designed for effortless removal of the components and the Soldering iron is used for their replacement.Both the temperature range and percentage of air flow are monitored and adjusted as required. The PCU (Portable Configuration Unit), used as a storage device for downloading parameters from a PC onto the Station, locks all the parameters including the energy saving mode. The PCCU (Portable Configuration and Calibration Unit) automatically calibrate the Hot Air Pencil and the Soldering Iron to an accurate certified source.
Features
- 1005 85W Hot air pencil with air flow button
- 1002/80W Soldering Iron with soft grip
- Moulded power cord
- 1.5MM Round and 3MM flat hot air nozzles
- Fine soldering iron tip
- Two cast iron spring stands
- SMD removal kit
- Input : 220V~240V 50/60Hz 0.6 amps
- Power : 1A 5mm fast blow fuse
- Output : 2 x 24v 85w AC
- Air Flow : 1.5 to 6.5 litres/min
- Temperature : Soldering iron 100°~450° ±4°C, Hot air pencil 180°~480° ±10°C
- Dimensions : L250mm x W250mm x H105mm
- Weight : 4 Kg
- All MAGNUM Stations comes with cleaning equipment, spare tips and a comprehensive instruction manual
