Overview

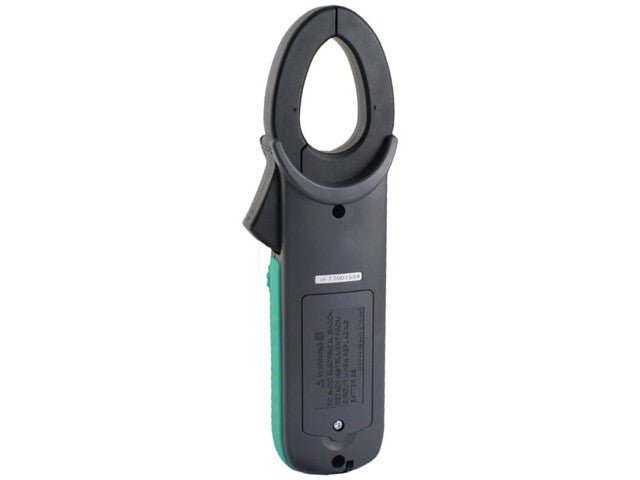

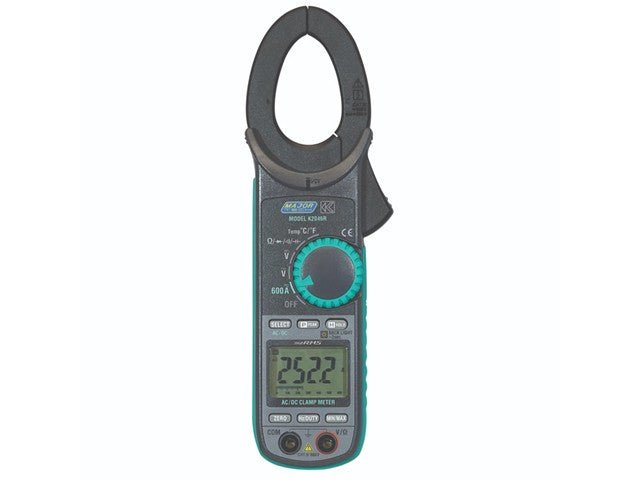

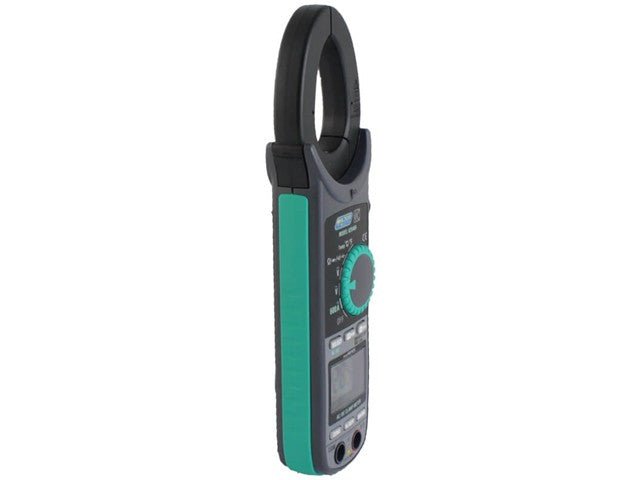

The K2046R digital clamp-meter is a True RMS sensing, auto-ranging multimeter for measuring current, voltage, capacitance, frequency, and resistance in electrical testing applications. It has a clamp that measures ACA and DCA to 600A. The Red LED indicates the presence of AC voltage, this NCV is a safety function for the user. This meter is of the same family as the K2056R being one of the first meters designed to meet international safety standard IEC 61010-1 CAT IV 600V to meet the demands for measuring voltage and current spikes. Ideally suited for power distribution companies, power utilities and maintenance fields.
Features
- 6039 count backlit LCD display with 61 segment bargraph
- Ø33mm Cable Clamp size
- Measurement of AC/DC Current up to 600A
- Measurement of AC/DC voltage up to 600V
- Temperature Measurement -50°C to 700°C
- Capacitance to 4mF
- Resistance to 60MΩ
- Frequency Measurement to 10kHz
- Continuity Buzzer and Diode Test
- Peak Hold and Data Hold
- Relative Mode, MIN/MAX recording mode
- Double Moulded housing provides comfortable palm grip
Specifications
| Function |
Range |
Resolution |
Accuracy |
| DC Current |
0.1A - 600A |
0.1A |
±(1.5% +5) |
| AC Current |
0.1A - 600A |
0.1A |
±(2.0% +5) |
| DC Voltage |
0.1mV - 600V |
0.1mV |
±(1.0% +3) |
| AC Voltage |
0.1V - 600V |
0.1V |
±(1.5% +4) |
| Resistance |
0.1Ω - 60MΩ |
0.1Ω |
±(1.5% +5) |
| Frequency |
0.1Hz - 10kHz |
0.1Hz |
±(0.5% +5) |
| Capacitance |
0.01μF - 4000μF |
0.01μF |
±(2.5% +20) |
| Temperature |
-50 to 700°C |
1°C |
±(5.0°C +3) |
| Duty Cycle |
0.1 TO 99.9% |
0,001 |
±(2.5% +5) |
| AC Bandwidth |
40Hz to 400Hz |
| Digital Display |
6039 |
| Bargraph |
Yes |
| Non Contact Voltage (NCV) |
Yes |
| Overrange indication |
Yes |
| Continuity |
Yes |
| Diode test |
Yes |
| Jaw size |
33mm |
| Input impedance |
>10MΩ DCV & >10MΩ VAC |
| Min Max |
Yes |
| Peak hold |
Yes |
| Data Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
Double moulded case |
| Low battery indication |
Yes |
| Power source |
2 x R03 |
| Weight |
300g |
| Safety Specs |
IEC61010-1 CatIV 600V |
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
AC/DC | True RMS |
