MAJ K3005

SKU: MAJ K3005

BRAND: Major Tech

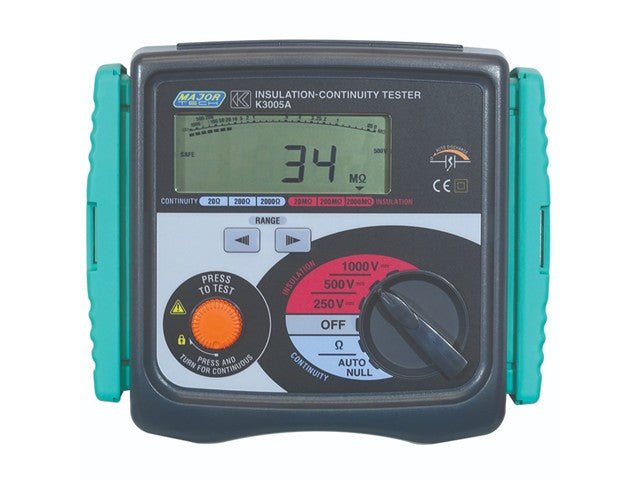

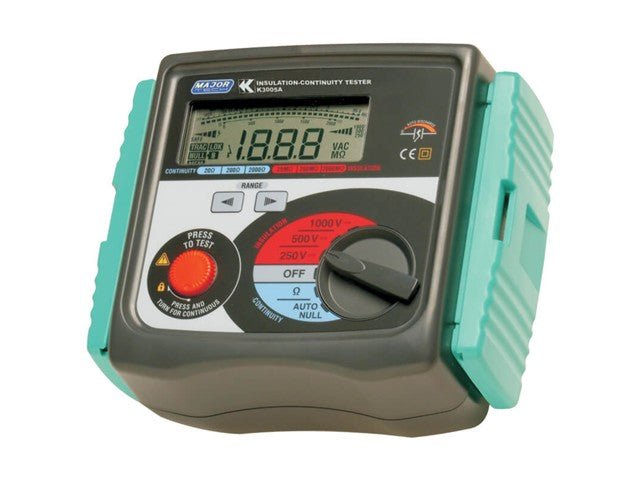

Digital Insulation Tester with 3 Test Ranges and unique Auto Null function

Overview



The K3005 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations.

An advanced feature included in both models is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy.

The top of the range K3005 is equipped with Trac-Lok circuits that improve battery life considerably, thus saving the user money.

Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas.

The K3005 Intrinsically Safe option is available on request

Features



  • Three test ranges 250V-500V-1000V
  • Auto null function
  • Intrinsically safe version available on request
  • Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
  • Displays the value of external AC voltage along with flashing symbol and buzzer
  • Lock Down Test Button for continuous use
  • 1mA output current on insulation test
  • 200mA short circuit on continuity range
  • Trac-Lok mode to extend battery life by up to 400%
