MAJ MT1882

SKU: MAJ MT1882

BRAND: Major Tech


DMM Auto Range 1000V CAT IV

DMM Auto Range 1000V CAT IV

Overview

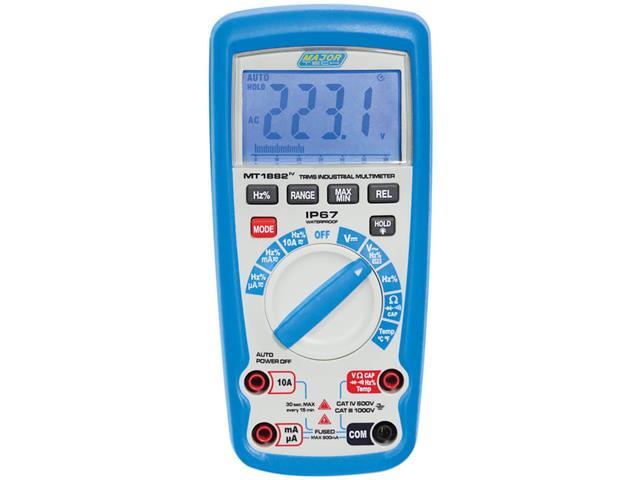

The MT1882 is a 1000V AC/DC IP67 True RMS Multimeter especially designed for everyday use by HVAC technicians and electricians, whist offering voltage measuring ranges up to 1000V AC and DC and with useful measuring ranges of Temperature, Resistance, AC/DC Current, Capacitance and Frequency. NCV function, automatic Non-Contact voltage detection, the LCD backlight will glow red when AC voltage above 110V is sensed. The large 6000 count backlit LCD display with a 61 segment bargraph ensures that readings are easy to read under all circumstances. The meter has been designed that should a user turn the rotary switch in any direction whilst an input of up to 1000V AC/DC is applied to the meter, the meter will not get damaged. The meter has a double moulded rubber case with IP67 waterproof and dustproof rating, rugged design for heavy duty use.

Features

  • IP67 Dust & waterproof with O-ring sealed casing
  • Auto range with manual override
  • Temperature between -20°C to 1000°C
  • Measures frequency range of 10Hz to 10MHz on electronic and electrical circuits
  • Measures AC and DC voltage to 1000V
  • Capacitance to 4000μF / Relative mode / Data hold
  • NCV detection above 110V AC, LCD turns red to indicate presence of voltage
  • MIN/MAX recording mode
  • Measures resistance up to 60MΩ
  • 6000 Count LCD display with a 61 segment analogue bargraph
  • Full ranges protection & Auto power off

Accessories:

  • Type K Temperature Probe
  • 9V Battery
  • MT810 Test Leads
  • Instruction Manual

Optional Accessories

  • MT684 IR Probe -30°C~550°C
  • MT680 K-Type Air Probe
  • MT682 K-Type Pipe Clamp Probe
  • MTMAG Magnetic Strip
  • MT685 K-Type General Purpose Probe
  • MT690 K-type Probe kit

Specifications

DC Voltage

1000V

DC Voltage resolution

0.1mV

DC Voltage accuracy

±(0.1% +2)

AC Voltage

1000V

AC Voltage resolution

1mV

AC voltage accuracy

±(0.8% +4)

DC Current

10A

DC Current resolution

0.1µA

DC Current accuracy

±(0.8% +3)

AC Current

10A

AC current resolution

0.1µA

AC Current accuracy

±(1.0% +3)

Duty Cycle

0.1 to 99.9%

Duty Cycle resolution

0.10%

Duty Cycle accuracy

±(1.2% +2)

Resistance

60MΩ

Resistance resolution

0.1Ω

Resistance accuracy

±(0.5% +2)

Frequency

9.999Hz to 9.999MHz

Frequency resolution

0.001Hz

Frequency accuracy

±(1.2% +3)

Capacitance

4000µF

Capacitance resolution

10pF

Capacitance accuracy

±(3% +5)

Temperature

-20 to 1000°C

Temperature resolution

0.1°C

Temperature accuracy

±(3.0%+5)

Continuity

Yes

Diode Test

Yes

AC Bandwidth

50Hz to 400Hz

Digital Display

6000

Bargraph

Yes

Non-Contact Voltage (NCV)

Yes

Over-range indication

Yes

Input Impedance

˃10MΩ VDC & ˃9MΩ VAC

Min Max

Yes

Data Hold

Yes

Back Light

Yes

Enclosure

Double moulded waterproof IP67

Low battery indication

Yes

Power source

6LF22

Weight

342g

Dimensions

187 x 81 x 50mm

Downloads

Additional Information

Device Multimeter
Type DMM | Auto Range | 1000V CAT IV
