Overview

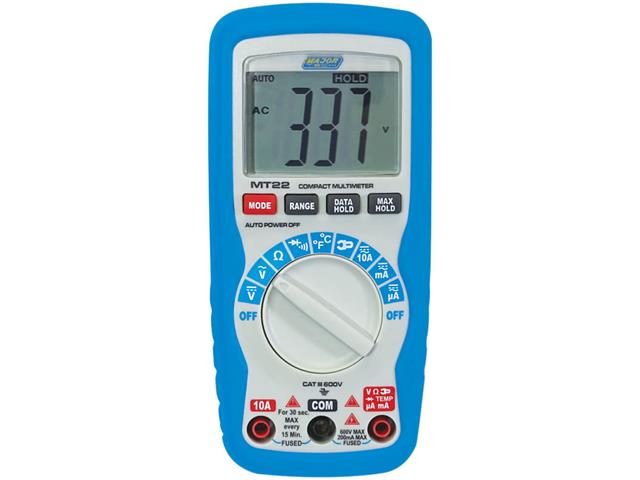

The MT22 is a 1000V AC/DC Compact Multimeter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. It is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. This compact auto ranging mulitmeter has a large 2000 count LCD and measures AC and DC voltage up to 1000 volts, AC and DC Current up to 10 Amps, Temperature measurement in 0C or 0F and resistance, plus a diode test function and continuity buzzer. The meter has a “Clamp-On Adaptor” range which allows the user to use an optional AC and DC clamp adaptor on the meter to increase the current measuring capabilities up to 2000 Amps.
Features
- Measures ACV and DCV up to 1000V
- Min/Max Reading
- Temperature between -50°C to 1000°C
- Fused 10A Range
- Diode Test & Continuity Buzzer
- Data Hold
- Duty Cycle
- Resistance to 20MΩ
- 2000 Count LCD
- Full Ranges Protection
- Clamp-on Adaptor Range
Accessories:
- 1 x 9V Battery
- 1 x K-type Temperature Probe
- 1 x Test Leads
- Instruction Manual
Specifications
| DC Voltage |
1000V
|
| DC Voltage resolution |
0.1mV
|
| DC Voltage accuracy |
±( 1.2%+2 )
|
| AC Voltage |
1000V
|
| AC voltage accuracy |
±(1.5% +3)
|
| AC Voltage resolution |
0.1mV
|
| DC Current |
10A
|
| DC Current resolution |
1mA
|
| DC Current accuracy |
±(2.5%+5)
|
| AC Current |
10A
|
| AC current resolution |
1mA
|
| AC Current accuracy |
±(3.0% +7)
|
| Resistance |
20MΩ
|
| Resistance resolution |
0.1Ω
|
| Resistance accuracy |
±(1.2% +2)
|
| Frequency |
10MHz
|
| Frequency resolution |
0.001Hz
|
| Frequency accuracy |
±(1.2% +3)
|
| Capacitance accuracy |
±(3.0% +5)
|
| Temperature |
-50 to 1000°C
|
| Temperature resolution |
1°C
|
| Temperature accuracy |
±( 3.0%+5)
|
| Continuity |
Yes
|
| Diode Test |
Yes
|
| AC Bandwidth |
50.0Hz to 60.0Hz
|
| Digital Display |
2000
|
| Over-range indication |
Yes
|
| Input Impedance |
˃10MΩ VDC & ˃10MΩ VAC
|
| Min Max |
Yes
|
| Data Hold |
Yes
|
| Enclosure |
Double moulded
|
| Low battery indication |
Yes
|
| Weight |
255g
|
| Dimensions |
150 x 70 x 48mm
|
