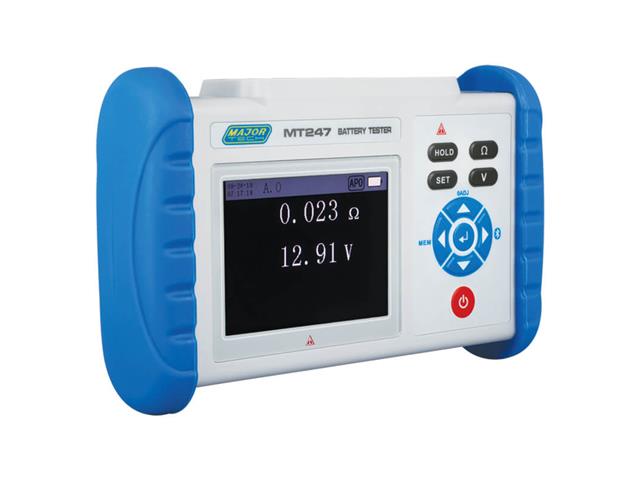

SKU: MAJ MT247
BRAND: Major Tech
In Stock
R 13,225.00 (inc VAT)
R 11,500.00 (ex VAT)
Function | Range | Resolution | Accuracy |
Resistance | 3mΩ – 3Ω | 1uΩ | ±1% fs. ± 20 dgt. |
DC Voltage | 7V – 71V | 1mV | ±0.2% fs. ±10 dgt |
Temperature | -10.0°C~60.0°C | 0.1°C | ±1.0°C |
Temperature and humidity | 23°C ± 5°C below 75% RH. | ||
Power supply | DC 3.7V lithium battery | ||
Maximum input voltage | DC 70V (between + measurement terminal and – measurement terminal), no AC input | ||
Measuring Method |

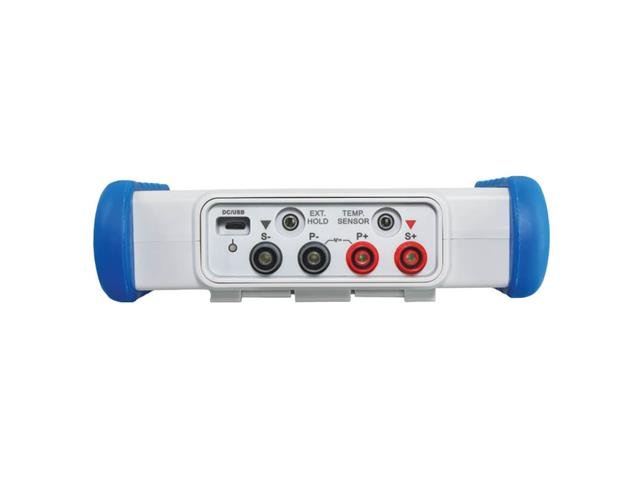

Internal resistance measurement: 1KHz (AC 4-terminal test method, open-circuit terminal voltage 3V max)
Measuring current: 2.0mA~200mA (different measuring currents in different ranges Temperature measurement: NTC temperature sensor (10KΩ at 26°C) A/D conversion method: Successive approximation type Display update frequency: 5 times/second |
||
Response time | 200ms | ||
Measure time | About 2 seconds | ||
LCD Size | 70.1mm x 52.6mm /3.5 inches (320×240 resolution 16-bit true color screen) | ||
Instrument size | 190mm x 121mm x 51mm | ||

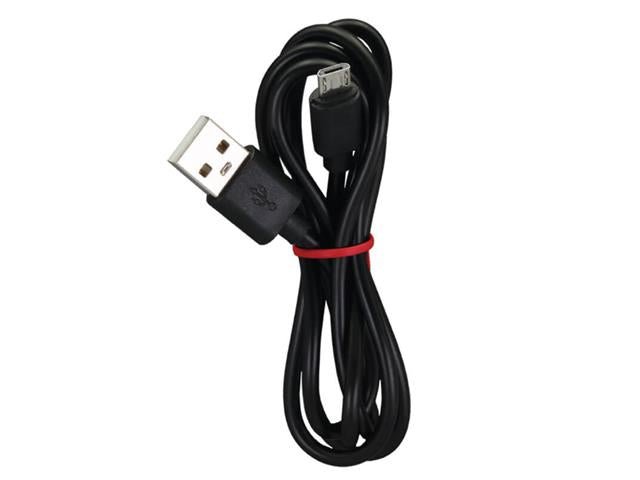

USB interface | With a USB interface, the stored data can be uploaded to the computer, saved, and printed | ||
Bluetooth connection | Yes | ||
Hold and store function | Manual retention and storage, automatic retention, and storage | ||
Measurement judgment function | Pre-set PASS, WARNING, FAIL judgment thresholds | ||
Low Battery Indication | Yes | ||
Automatic shut-down | No operation when power on, it will power off automatically after about 15 minutes (can be turned off in the settings) | ||
Power consumption | 300mA MIN / 500mA MAX | ||
Weight | 80g (with battery) | ||
Working temperature and humidity | -10°C~40°C below 80% RH | ||
Storage temperature and humidity | -20°C~60°C below 70%RH | ||
Insulation resistance | Above 20MΩ (500V between circuit and case) | ||
Withstand voltage | AC 3700V/RMS (between circuit and case) | ||
External magnetic field | <40A/m | ||
External electric field | <1V/m | ||
Suitable for safety regulations | IEC 61010 |
Device | Tester |
Type | Battery | Resistance |
