Overview

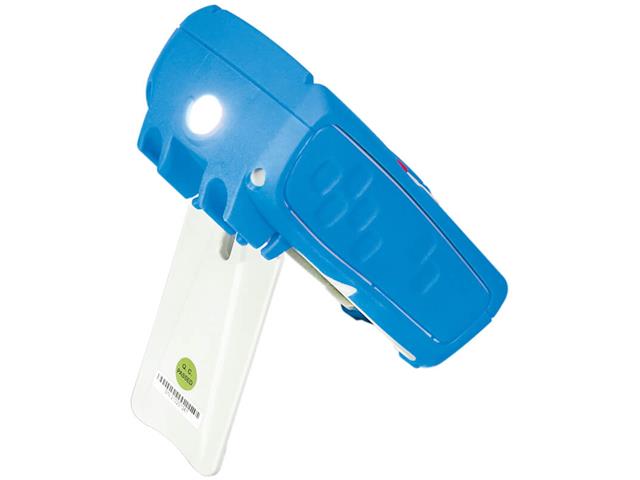

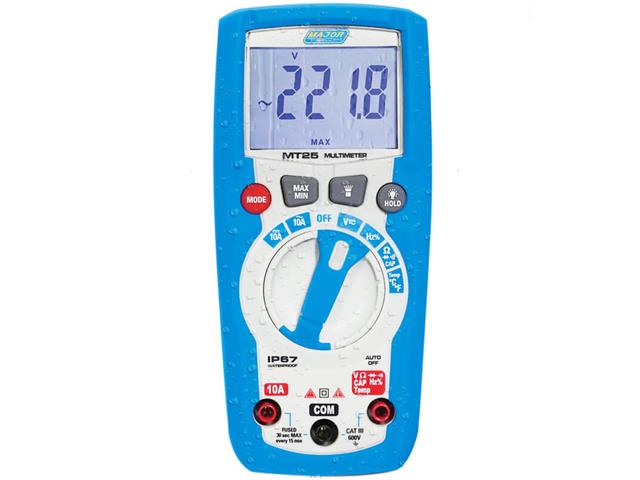

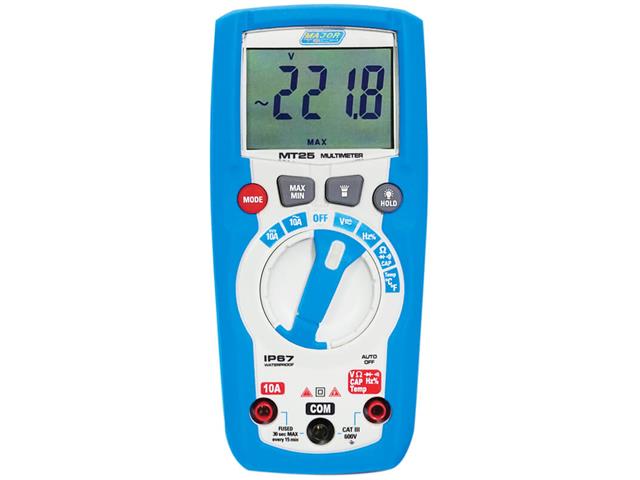

The MT25 600V AC/DC IP67 Compact Multimeter is a handheld tester that provides fast and accurate measurements, displayed on a large 4000 count backlit display with the added advantage of a 41 segment analogue bargraph. The MT25 has a double moulded rubber housing with IP67 waterproof and dustproof rating for safety and durability and has the IEC 61010-1 CAT III 600V safety rating. Multiple measuring functions include AC and DC voltage, AC and DC current, resistance, capacitance, frequency, temperature and duty cycle, plus a continuity and diode test range. The MT25 also offers the added convenience of a built-in LED flashlight for dimly lit areas and a tilt stand.
Features
- 41 Segment Bargraph
- Measures AC and DC voltage up to 600V
- Temperature measurement from -20°C to 760°C
- 4 000 Count LCD display
- LED Flashlight
- IP67 Dust & Waterproof
- Capacitance to 4000μF
- LCD Back Light
- Min, MAx & Data Hold
- Auto Power Off
- Auto Range and Manual Range Control
- Duty Cycle
Accessories
- Soft Carrying Case
- MT810 Test leads
- MT660 Temperature Probe
- Instruction Manual
- 3 x AAA 1.5V Batteries
Specifications
| DC Voltage |
600V
|
| DC Voltage resolution |
0.1mV
|
| DC Voltage accuracy |
±( 1.2%+2 )
|
| AC Voltage |
600V
|
| AC Voltage resolution |
1mV
|
| AC voltage accuracy |
±(1.5%+10)
|
| DC Current |
10A
|
| DC Current resolution |
1mA
|
| DC Current accuracy |
±(3%+5)
|
| AC Current |
10A
|
| AC current resolution |
1mA
|
| AC Current accuracy |
±(3.0% +5)
|
| Duty Cycle |
0.1 to 99.9%
|
| Duty Cycle resolution |
0.10%
|
| Duty Cycle accuracy |
±(1.2% +2)
|
| Resistance |
40MΩ
|
| Resistance resolution |
0.1Ω
|
| Resistance accuracy |
±(1.2%+5)
|
| Frequency |
9.999Hz to 9.999MHz
|
| Frequency resolution |
0.10%
|
| Frequency accuracy |
±(1.2%+2)
|
| Capacitance |
4000µF
|
| Capacitance resolution |
10pF
|
| Capacitance accuracy |
±(3% +5)
|
| Temperature |
-20°C to 760°C
|
| Temperature resolution |
0.1°C
|
| Temperature accuracy |
±( 3.0%+5)
|
| Continuity |
Yes
|
| Diode Test |
Yes
|
| AC Bandwidth |
50.0Hz to 60.0Hz
|
| Digital Display |
4000
|
| Over-range indication |
Yes
|
| Input Impedance |
˃7.8MΩ DCV & ˃7.8MΩ VAC
|
| Data Hold |
Yes
|
| Back Light |
Yes
|
| Enclosure |
Double moulded waterproof IP67
|
| Low battery indication |
Yes
|
| Power Supply |
3 X 1.5V AAA Batteries
|
Downloads
Additional Information
| Device |
Multimeter |
| Type |
IP67 | Compact |
