MAJ MT310

SKU: MAJ MT310

BRAND: Major Tech


Earth Leakage/Polarity Tester 220V

Earth Leakage/Polarity Tester 220V

Overview

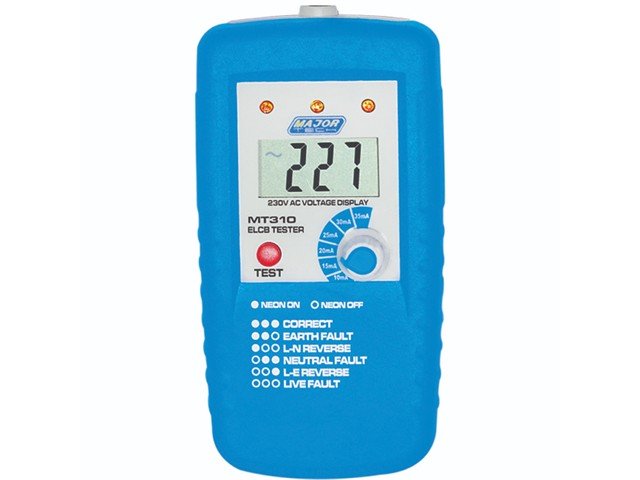

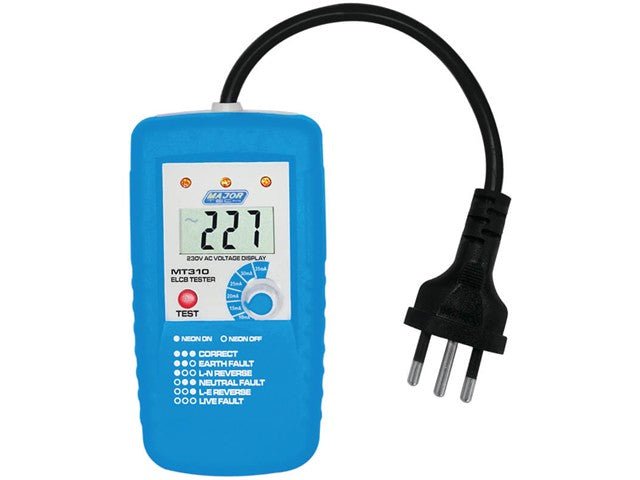

The MT310 is a Socket ELCB Tester that is compact, lightweight and easy to use socket and polarity and earth leakage tester that tests 3-wire 230V AC circuits and Earth Leakage Circuit Breakers. A unique feature is the AC Voltage indication on the LCD display. It also features a milli-amp (mA) trip setting with a separate test button. The unit can be set from 10mA, used for testing saturation and to eliminate nuisance tripping, to 35mA. The bright neon indication assists the user in confirming the wiring status of the circuit under test. Simply plug the MT310 into a wall socket and the results are clearly displayed. For additional safety, the MT310 is rated at CAT IV 300V and CAT III 600V.

Features

  • Compact, lightweight and easy to use
  • Correct Wiring Indication with neon lights
  • Operates on 230V systems
  • AC Voltage measurement on LCD display
  • Fixed current settings from 10mA to 35mA
  • Separate test button
  • Double injection rubber housing

Specifications

Voltage Measurement

150VAC to 245VAC

Voltage accuracy

±(10%)

Frequency Response

50/60Hz

Range

x 250, x 1, x 1/2mA

Test Current

10, 15, 20, 25, 30, 35mA

Test Current Accuracy

± (1.75mA @ 230VAC)

Socket polarity

Yes

Display

LCD

Enclosure

Double Injection moulding

Weight

130g

Dimensions

130 x 69 x 32mm

Safety Specs

IEC61010-1 CAT III 600V

Downloads

Additional Information

Device Tester
Type Earth Leakage/Polarity | 220V
