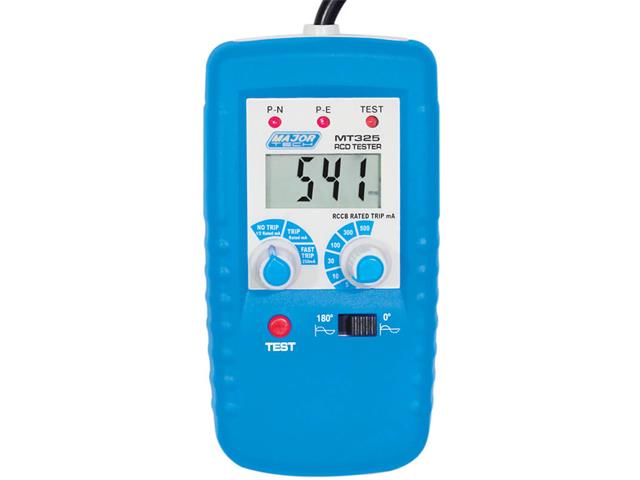

MAJ MT325

 The compact MT325 is lightweight and easy to use digital RCB Tester and operates on 230V AC circuits while offering high accuracy measurements and performance. Features include pre-programmed tripping current ranges, with direct readout of disconnection time, 1ms resolution and neon indication of correct wiring status. The MT325 eliminates the need for repeat tests because of consistent results that are obtained with the 0? and 180? phase angle.

• 230V AC
• Current 5mA – 500mA
• Data Hold
• 180? Phase angle selection
• Tripping time with a resolution of 1ms
• Correct wiring indication
• Double injection housing

• Weight : 185g
• Dimensions : 128 x 68 x 30mm
• Display : LCD
• Enclosure : Double Injection moulding
• Range : x 250, x 1, x 1/2mA
• Frequency Response : 50/60Hz
• Measuring Range : 2000ms
• Measuring range accuracy : ? (2% ?3)
• Phase angle selection : 0? to 180?
• Safety Specs : IEC61010-1 CatIII 600V
• Test Current : 5, 10, 30,199,399,500mA
• Voltage accuracy : ? (10%)
• Voltage Measurement : 230V
