Overview

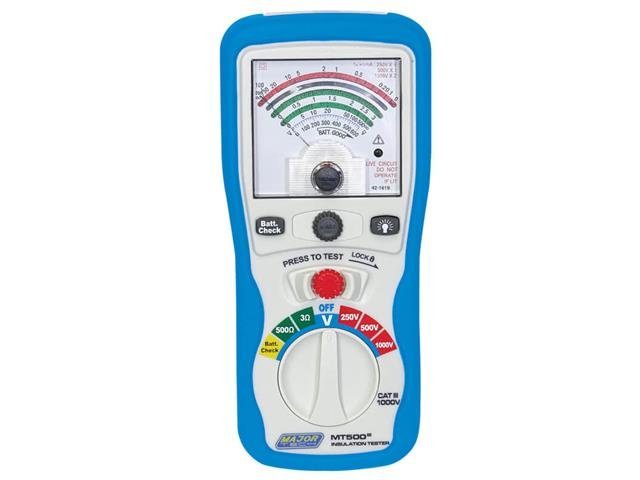

The MT500 is a 1000V Analogue Insulation Tester rugged, compact and easy to use Insulation and Continuity Tester. The instrument offers three insulation test ranges: 250V, 500V and 1000V, a 3Ω continuity range and a 500Ω resistance range. This meter is not only equipped with a “Live Circuit Warning” but also displays the actual AC voltage measurements of the mains supply. The scale has a backlight which is ideal when working in dimly lit environments.
Features
- Three test ranges 250V-500V-1000V
- 600V AC voltage range
- Live Circuit warning and buzzer
- Data Hold function
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Automatic discharge after test
- Front panel zero adjustment for test lead resistance
- Lock down Test Button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmould housing
- Illuminated display
Accessories:
- Test Leads
- Black Crock Lead
- Magnetic Strip

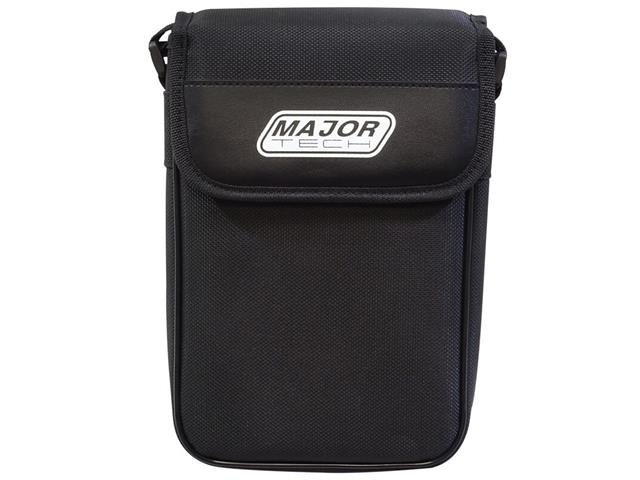

- Carrying Case
- Adjustable shoulder strap
- 6 x AA Batteries
- Instruction Manual
Specifications
| Insulation resistance 250V |
250V
|
| Insulation resolution 250V |
100MΩ
|
| Insulation accuracy 250V |
±(5%)
|
| Insulation resistance 500V |
500V
|
| Insulation resolution 500V |
200MΩ
|
| Insulation accuracy 500V |
±(5%)
|
| Insulation resistance 1000V |
1000V
|
| Insulation resolution 1000V |
400MΩ
|
| Insulation accuracy 1000V |
±(5%)
|
| Short Circuit Current |
1.3mA
|
| AC Voltage |
600V
|
| AC Voltage resolution |
20V
|
| AC voltage accuracy |
±(3%)
|
| Resistance |
3Ω – 500Ω
|
| Resistance resolution |
0.05Ω
|
| Resistance accuracy |
±( 3%)
|
| Continuity |
Yes
|
| Auto discharge |
Yes
|
| AC Bandwidth |
40Hz – 400Hz
|
| Digital Display |
Analogue Display
|
| Over-range indication |
Yes
|
| Input Impedance |
˃1.2MΩ VAC
|
| Data Hold |
Yes
|
| Back Light |
Yes
|
| Enclosure |
Double moulded
|
| Low battery indication |
Yes
|
| Power Supply |
6 x 1.5V AA
|
| Weight |
700g
|
| Dimensions |
200 x 92 x 50mm
|
| Safety Specs |
IEC61010-1 CAT IV 600V
|
Downloads
Additional Information
| Keywords |
major tech, MT500, insulation tester, insulation, tester, analog |
| Device |
Insulation Tester |
| Type |
Analog |
