Large LCD Digital Insulation Tester with 4 Test Ranges (125V, 250V, 500V, 1000V)
Digital Insulation Tester
Overview

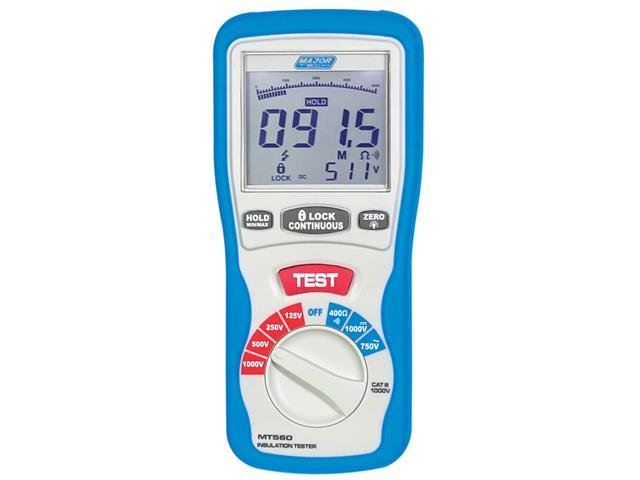

The MT560 is a 1000V Digital Insulation Tester and has a large dual display with a bargraph indicating the insulation resistance. This compact handheld meter has four test ranges: 125V, 250V, 500V and 1000V source for the test and under each range it can supply more than 1mA current to feed the capacitance load. The tester features AC and DC voltage ranges as well as a battery indication. Should AC voltage be present, the LCD display will indicate to the operator the AC voltage value, regardless of what range the meter is on except in the Off position. Other features include a data hold function, a bright white LED back light and a continuity buzzer.
Features
- Four test ranges 125V-250V-500V-1000V
- MIN/MAX Record mode
- Measures AC Voltage to 750V and DV Voltage to 1000V
- Large Dual LCD display with bargraph
- Live Circuit detection prevents insulation tests if voltage >30V
- Auto Null of test lead resistance
- 1mA output current on insulation test
- 200mA short circuit on continuity range
- Continuity Buzzer
- Automatic discharge of capacitive voltage after test for added protection
- Data Hold function
- Lock down Test Button for continuous use
- Hands free strap and magnet supplied as standard accessories
- Rubber overmould housing
- Illuminated display
Accessories:

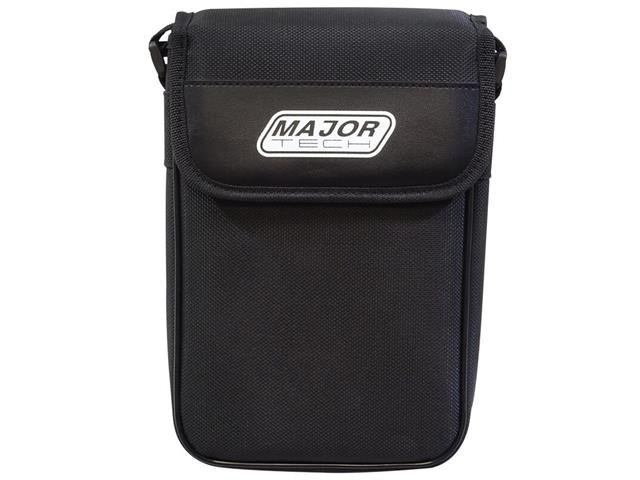

- Carrying Case
- 6 x AA Batteries
- HDT1282 Test leads
- Instruction manual
- MTMAG Magnetic strip
- Adjustable shoulder Strap
- Line Probe with Alligator clip
Specifications
| Insulation resistance 125V |
125V
|
| Insulation resolution 125V |
4.000MΩ
|
| Insulation accuracy 125V |
±(2.0% +10)
|
| Insulation resistance 250V |
250V
|
| Insulation resolution 250V |
40.00MΩ
|
| Insulation accuracy 250V |
±(2.0% +10)
|
| Insulation resistance 500V |
500V
|
| Insulation resolution 500V |
400.0MΩ
|
| Insulation accuracy 500V |
±(2.0% +10)
|
| Insulation resistance 1000V |
1000V
|
| Insulation resolution 1000V |
4000MΩ
|
| Insulation accuracy 1000V |
±(3.0% +10)
|
| Short Circuit Current |
1mA
|
| Current measurement |
200mA
|
| DC Voltage |
1000V
|
| DC Voltage resolution |
1V
|
| DC Voltage accuracy |
±(0.8% +3)
|
| AC Voltage |
750V
|
| AC Voltage resolution |
1V
|
| AC voltage accuracy |
±(1.2%+10)
|
| Resistance |
400Ω
|
| Resistance resolution |
0.01Ω
|
| Resistance accuracy |
±(1.2% +3)
|
| Continuity |
Yes
|
| Auto discharge |
Yes
|
| AC Bandwidth |
40Hz – 400Hz
|
| Digital Display |
Dual LCD Display
|
| Over-range indication |
Yes
|
| Input Impedance |
˃10MΩ VDC & ˃10MΩ VAC
|
| Data Hold |
Yes
|
| Back Light |
Yes
|
| Enclosure |
Double moulded
|
| Low battery indication |
Yes
|
| Power source |
6 x R6
|
| Dimensions |
200 x 92 x 50mm
|
| Weight |
700g
|
Downloads
Additional Information
| Device |
Insulation Tester |
| Type |
Digital |
