Overview

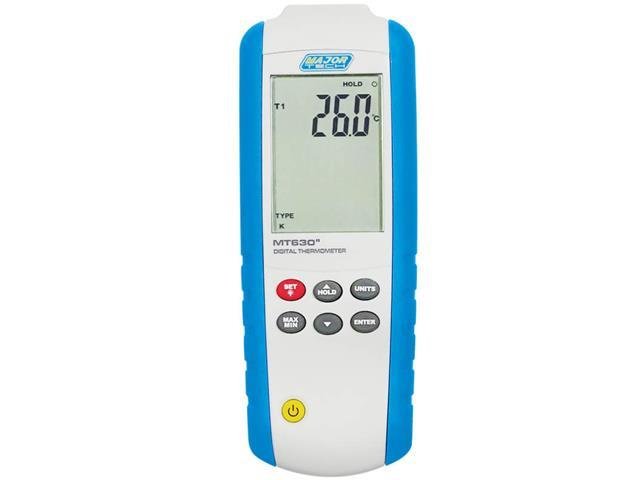

The MT630 is a J/K-type Single Input Digital Thermometer with a wide measuring range from K-type -200°C to +1372°C and J-type -210°C to +1100°C with a selectable resolution of 0.1°C or 1°C that offers fast response and laboratory accuracy. The MT630 displays a number of temperature readings such as T1 plus MAX, MIN and AVG. Features include a relative time clock on MAX, MIN and AVG and provides a time reference for major events. Electronic offset function which allows compensation of thermocouple errors to maximise overall accuracy.
Features
- Single K-Type input
- Max / Min / AVG
- K-type -200°C to 1372°C
- J-type -210°C to 1100°C
- Resolution 0.1°C / 1°C
- Selectable units of °C, °F, K
- Data Hold
- Relative Time Clock on Max / Min / Average
- Electronic Offset function
Accessories:
- 3 x R03 Battery
- Instruction Manual
- MT660 Temperature Probe
Optional Accessories:
- MT690 Temperature Probe Kit
- MT685 General Purpose Probe
- MT680 Air Probe
- MT675 Right Angle Surface Probe
- MT670 Surface Probe
Specifications
| Channels |
One
|
| K Type |
-200°C to 1372°C
|
| K Type accuracy |
±(0.15%+1°C)
|
| K Type resolution |
0.1°C
|
| J Type |
-210°C to 1100°C
|
| J Type accuracy |
±(0.15%+1°C)
|
| J Type resolution |
0.1°C
|
| Temperature Ranges |
°C, °F or Kelvin (K)
|
| Over-range indication |
Yes
|
| Min Max Ave |
Yes
|
| Low battery indication |
Yes
|
| Digital Display |
LCD Display
|
| Data Hold |
Yes
|
| Back Light |
Yes
|
| Enclosure |
Double over moulded
|
| Power source |
3 X R03
|
| Dimensions |
160 x 58 x 27mm
|
| Weight |
200g
|
