Overview

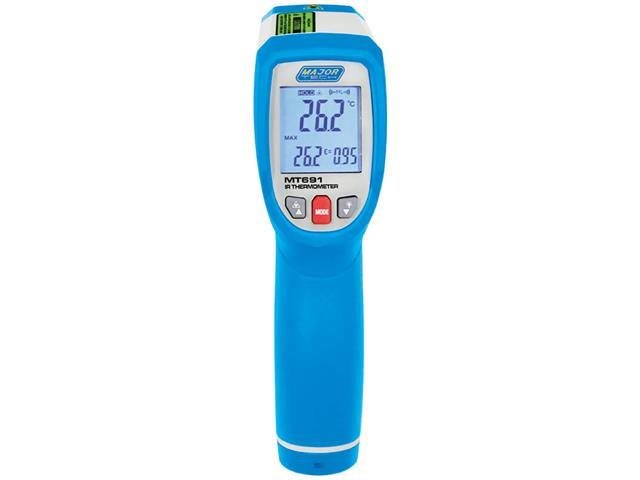

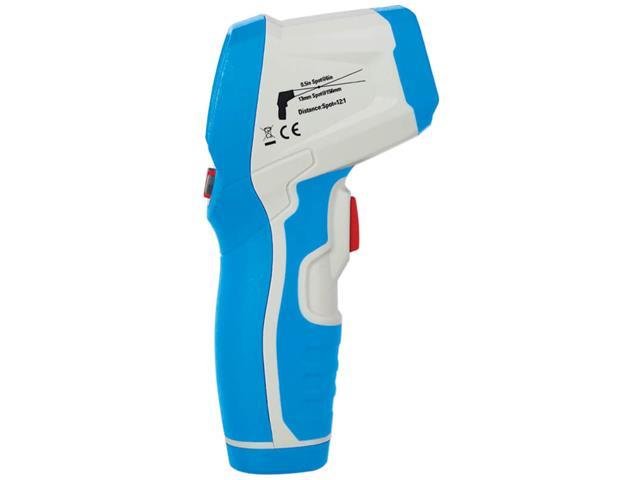

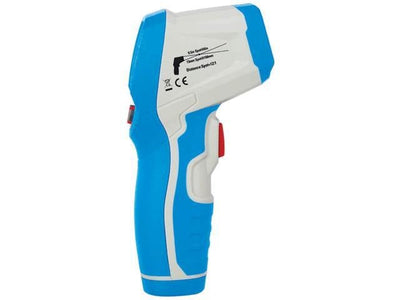

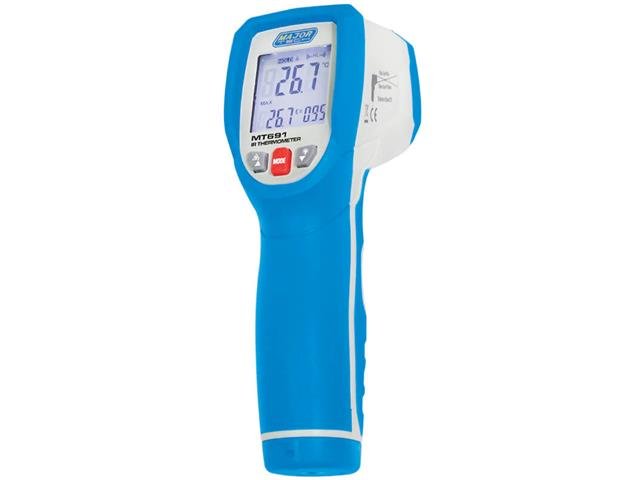

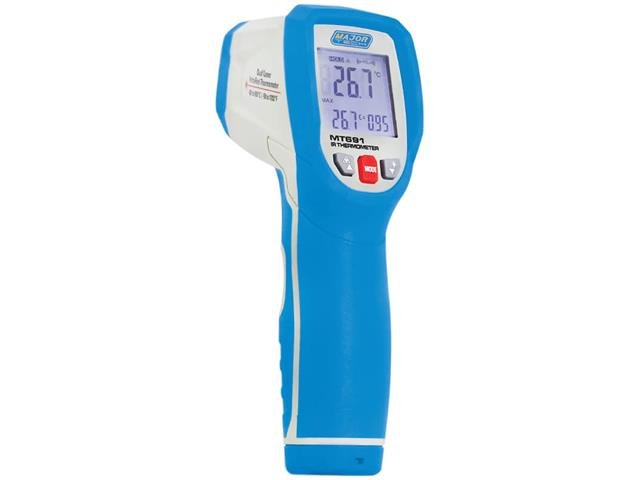

The MT691 is a 650°C Dual Laser Infrared Thermometer that is small and compact with a pistol grip and has a super fast sampling rate of 150 milliseconds. The distance to spot ratio is 12:1, and the temperature range is from -50°C to 650°C. This dual laser infrared thermometer meter features two laser pointers which converges into a single spot when the unit is at the optimum distance from the object being measured. Special features include adjustable emissivity from 0.1 to 1.0, max hold, response time 150mS, large backlit LCD display, High and Low alarm and a trigger lock for continuous use.
Features
- Spot Ratio 12:1
- Temperature -50⁰C to +650⁰C
- Response time 150ms
- Adjustable emissivity from 0.10 to 1.0
- Dual laser sighting
- Selectable ⁰C or ⁰F
- Automatic Data Hold
- MIN, MAX, AVG and DIF temperature displays
- Set High and Low alarms
- Automatic selection range and Display Resolution
- Backlit LCD display
- 2 meter drop tested
- IP54 Splash Proof & Dust Resistant
- Auto Power Off
Accessories:
- Carrying Case
- 2 x AAA Batteries
- Instruction Manual
Application:
- Mechanical / Electrical Equipment
- Checking heater or oven temperature for calibration and control
- Checking for hot spots in fire-fighting
- Monitoring materials in processes involving heating or cooling
Specifications
Infrared temperature range |
-50 to 650°C
|
Infrared temp resolution |
0.1°C
|
Infrared temp accuracy |
±(1% ± 1°C)
|
Response time |
150ms
|
Spectral Response |
8 to 14um
|
Display |
LCD Display
|
Spot Ration |
12 : 1
|
Adjustable Emissivity |
0.10 to 1.0
|
Laser Targeting |
Dual laser
|
Min/Max/Diff/Ave |
Yes
|
Hi/Low Alarm |
Yes
|
Back Light |
Yes
|
Enclosure |
Moulded
|
Low battery indication |
Yes
|
Power source |
2 x 1.5V AAA batteries
|
Weight |
163g
|
Dimensions |
146 x 104 x 43mm
|
Downloads
Additional Information
Device |
Thermometer |
Type |
Mini | Infrared |
