MAJ MT710

SKU: MAJ MT710

BRAND: Major Tech

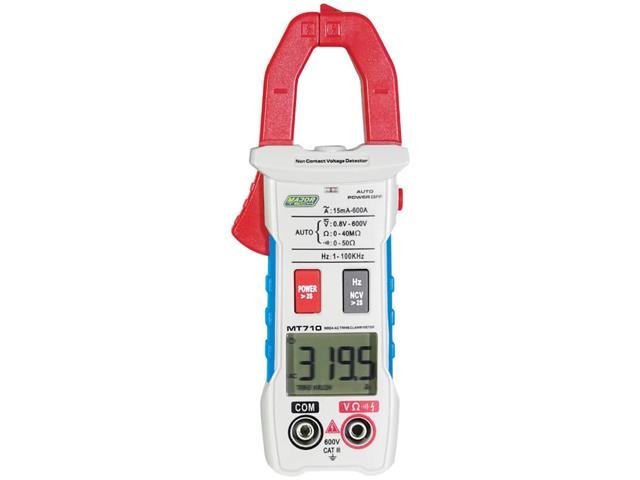

600A AC True RMS Clamp Meter

600A AC True RMS Clamp Meter

Overview

The MT710 is a CAT III 600V, 4000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “----“ when voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for electricians, HVAC technicians and students studying electrical.

Features

  • 4000 count backlit LCD display
  • Ø25mm Cable Clamp size
  • Smart Mode automatically identifies DCV, ACV, Resistance and continuity
  • Measurement of DC voltage and AC voltage up to 600V
  • INRUSH Current Measurements
  • NCV – Non-Contact Voltage Detector
  • Built-In Flashlight
  • Continuity buzzer
  • Peak Mode and Data Hold function
  • Auto Power Off

Specifications

AC Current

4.000A – 600A

AC Current Resolution

4mA

AC Current Accuracy

±(2.5% + 8 Digits)

DC Voltage

4.000V – 600V

DC Voltage Resolution

1mV

DC Voltage Accuracy

±(0.5% + 3 Digits)

AC Voltage

4.000V – 1000V

AC Voltage Resolution

1mV

AC Voltage Accuracy

±(1% + 5 Digits)

Resistance

4.000kΩ – 40.00MΩ

Resistance Resolution

0.001kΩ

Resistance Accuracy

±(0.5% + 3 Digits)

Frequency

4.000Hz – 100.0kHz

Frequency Resolution

0.001Hz

Frequency Accuracy

±(0.1% + 2 Digits)

True RMS Measurements

ACV, ACA

AC Bandwidth

40Hz-1kHz

Digital Display

4000

Non-Contact Voltage (NCV)

Yes

Overrange Indication

Yes

Continuity

Yes

Jaw Size

25mm

Peak Hold

Yes

Back Light

Yes

Enclosure

ABS Moulding

Low Battery Indication

Yes

Batteries

2 x AAA

Weight

172g

Dimensions

172 x 64 x 32mm

Safety Specs

IEC61010-1 CAT IV 300V

Downloads

Additional Information

Device Clamp Meter
Type 600A AC | True RMS
