Overview

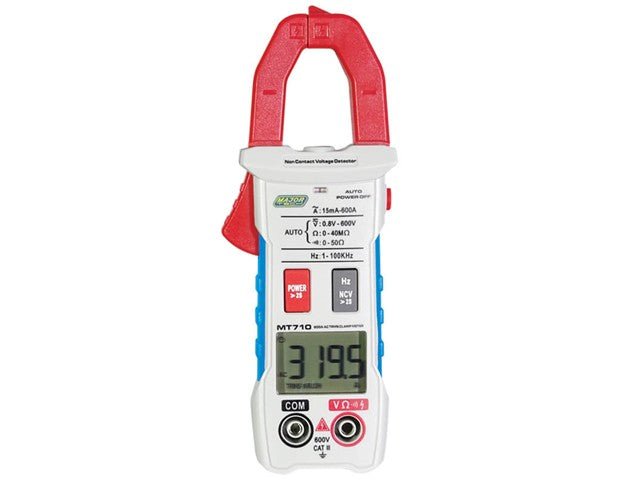

The MT710 is a CAT III 600V, 4000 count True RMS 600A AC digital clamp meter with indication on a large backlit LCD display, providing fast
sampling time with high accuracy. The Smart mode, “AUTO”, is a function that automatically identifies DC voltage, AC voltage, Resistance and
continuity and automatically displays the measurements. By pressing the NCV button continuously the LCD displays “EF” and will display “----“ when
voltage is detected and the buzzer sounds. The meter measures 600V AC/DC, frequency, resistance measurements, plus Inrush current and Peak
Voltage value. Other features include, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern compact housing ideal for
electricians, HVAC technicians and students studying electrical.
Features
- 4000 count backlit LCD display
- Ø25mm Cable Clamp size
- Smart Mode automatically identifies DCV, ACV, Resistance and continuity
- Measurement of DC voltage and AC voltage up to 600V
- INRUSH Current Measurements
- NCV – Non-Contact Voltage Detector

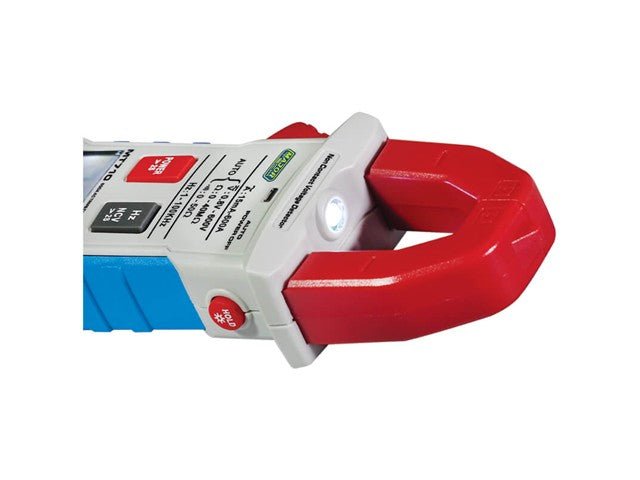

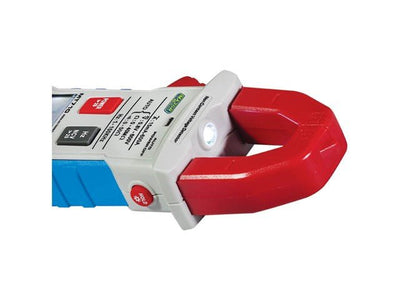

- Built-In Flashlight
- Continuity buzzer
- Peak Mode and Data Hold function
- Auto Power Off
Specifications
| Function |
Range |
Resolution |
Accuracy |
| AC Current |
0.004A – 600A |
4mA |
±(2.5% + 8 Digits) |
| DC Voltage |
0.001V – 600V |
1mV |
±(0.5% + 3 Digits) |
| AC Voltage |
0.001V – 600V |
1mV |
±(1% + 3 Digits) |
| Resistance |
0.001K? – 40M? |
0.001k? |
±(0.5% + 3 Digits) |
| Frequency |
0.001Hz – 100kHz |
0.001Hz |
±(0.1% + 2 Digits) |
| True RMS Measurements |
ACV, ACA |
| AC Bandwidth |
40Hz-1kHz |
| Digital Display |
4000 |
| Non-Contact Voltage (NCV) |
Yes |
| Overrange Indication |
Yes |
| Continuity |
Yes |
| Jaw Size |
25mm |
| Peak Hold |
Yes |
| Back Light |
Yes |
| Enclosure |
ABS Moulding |
| Low Battery Indication |
Yes |
| Batteries |
2 x AAA |
| Weight |
172g |
| Dimensions |
172 x 64 x 32mm |
| Safety Specs |
IEC61010-1 CAT IV 300V |
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
600A AC | True RMS |
