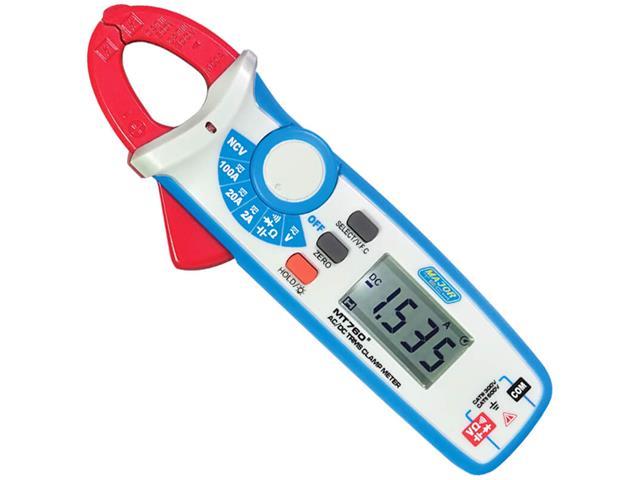

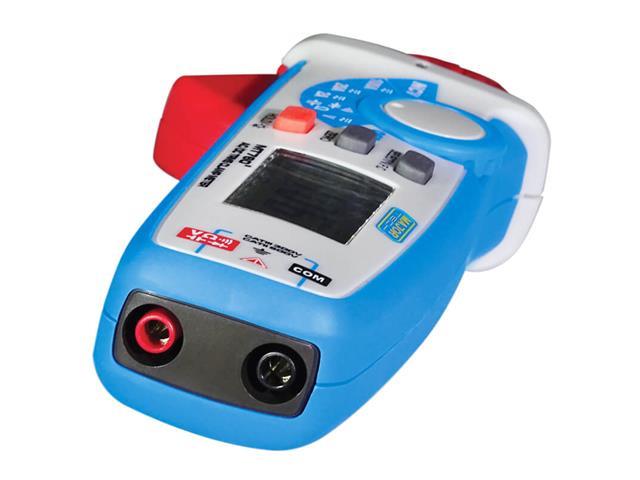

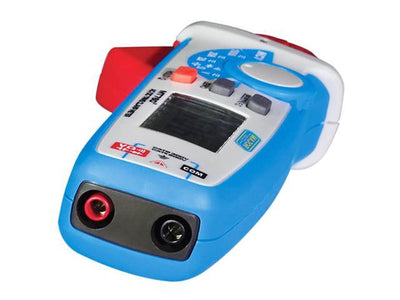

The MT760 is a 100A AC/DC Clamp Meter with a resolution of 1mA. The MT760 has a compact design, high reliability and safety, and provides fast sampling time with high accuracy and all readings are indicated on a large backlit LCD display. The meter measures 600V AC/DC, capacitance, resistance measurements, plus a continuity buzzer and diode test function. The VFC function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Zero/ Relative mode for Capacitance Zero, resistance, DCV, ACV, DCA and ACA offset adjustment and Non-Contact voltage detection. Housed in a modern double moulded rubber housing.

• Current measurement from 1mA
• Measures AC and DC current to 100 Amps
• Ø17mm Cable Clamp size
• 2000 count backlit LCD display
• Measurement of DC voltage and AC voltage up to 600V
• Capacitance to 20mF
• VFC – Variable Frequency Drive voltage value
• Microprocessor Zero adjustment
• NCV – Non-Contact Voltage Detector
• Continuity buzzer and Diode Test
• Data Hold function
• Auto Power Off

Accessories:

• Test Leads

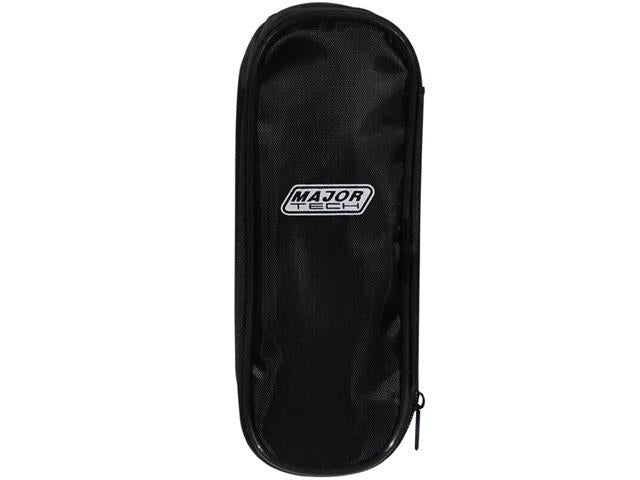

• Carrying Case
• 2 x AAA Batteries
• Instruction Manual

Jaw size	17mm
DC Current	2.000A – 100.0A
DC Current resolution	0.01mA
DC Current accuracy	±(2% + 8 Digits)
AC Current	2.000A – 100.0A
AC current resolution	1mA
AC Current accuracy	±(3% + 10 Digits)
DC Voltage	200.0mV – 600V
DC Voltage resolution	0.1mV
DC Voltage accuracy	±(0.7% + 5 Digits)
AC Voltage	2.000V – 600V
AC Voltage resolution	1mV
AC voltage accuracy	±(1% + 3 Digits)
AC Voltage VFD	200.0V – 600V
AC Voltage VFD Resolution	100mV
AC Voltage VFD Accuracy	±(4% + 3 Digits)
Resistance	200.0Ω – 20.00MΩ
Resistance resolution	0.1Ω
Resistance accuracy	±(1% + 2 Digits)
True RMS Measurements	ACA, ACV
AC Bandwidth	50Hz to 400Hz
Digital Display	2000
Non-Contact Voltage (NCV)	Yes
Over-range indication	Yes
Input Impedance	>1MΩ DCV & >1MΩ VAC
Min Max	Yes
Data Hold	Yes
Back Light	Yes
Enclosure	Overmolded case
Low battery indication	Yes
Weight	170g
Dimensions	175 x 60 x 33.5mm
Safety Specs	IEC61010-1 CAT II 600V
