MAJ MT785

Name: MAJ MT785 - Communica [Part No: MAJ MT785]
Brand: Major Tech
SKU: MAJ MT785
Price: 7220 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: MAJ MT785

BRAND: Major Tech

In Stock
R 8,303.00_{(inc VAT)}
R 7,220.00_{(ex VAT)}

Collections: Test & Measurement

Type: Clamp Multimeters & Accessories

Category: Clamp Multimeters & Accessories

600V 1000A AC/DC True Rms Watt Clamp Meter

1000A AC/DC TRMS Watt Meter DCM

Overview

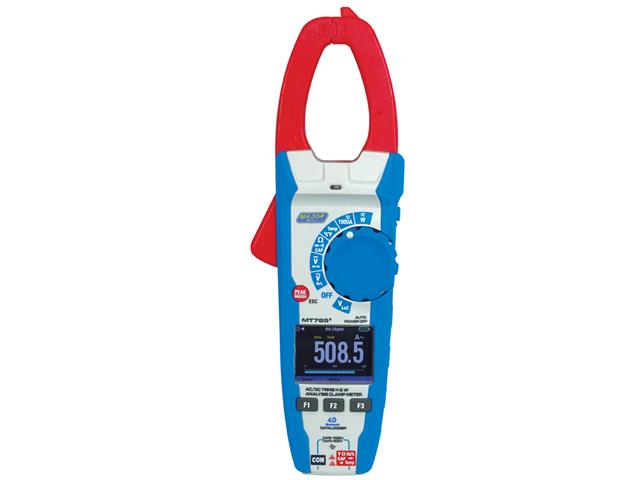

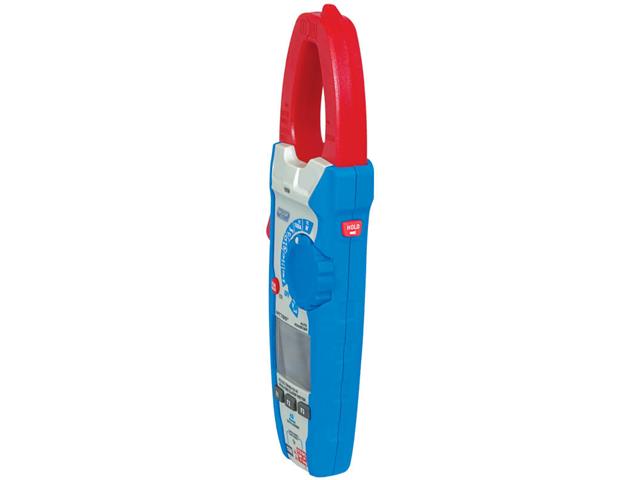

The MT785 Clamp Meter is a 1500V Harmonics and Wattage Analysis Clamp Meter that is rated CAT IV 600V, and has a 6000 count LCD Display. This clamp meter measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display. The MT785 simultaneously measures and displays Active, Reactive and Apparent Power and Energy, and current harmonic analysis up to the 25th order with THD% calculation in a single phase. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter has been designed to measures 1500V DC purposely for the Solar industry, 1000V AC, temperature, frequency, capacitance and resistance, plus the Low-Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. This Clamp Meter has a built in record and store function and displays trend charts, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organise and share recordings.

Features

CAT IV 600V and CAT III 1000V
Bluetooth 4.0 Technology

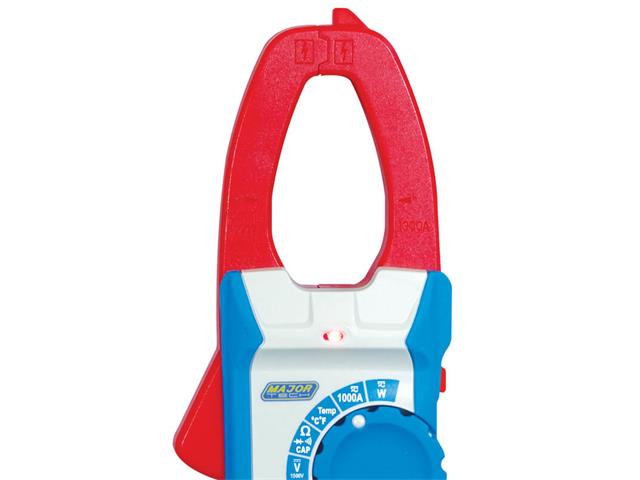

Ø33mm Cable Clamp size

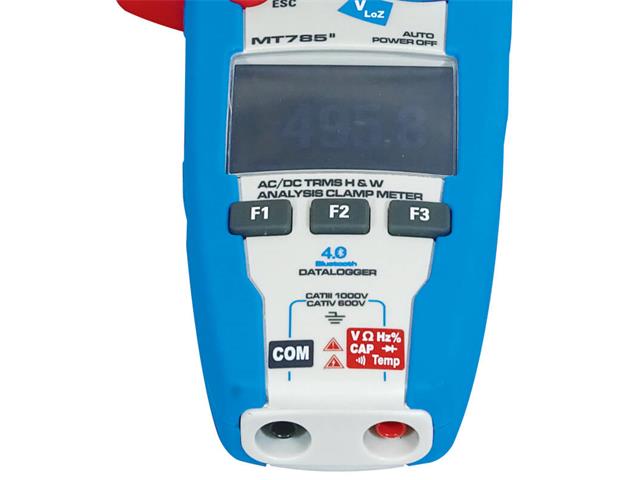

6000 count TFT colour LCD display
1000A AC/DC
1500V DC / 1000V AC and 1000V AC+DC
60Mꭥ Resistance
10kHz Frequency
6000µF Capacitance
-40 to 1000˚C K-Type Temperature
Energy measurements on single phase – Active, Reactive and Apparent
Trend Capture Function
INRUSH Current Measurements
AC Voltage and Current Harmonics (1 – 25) and THD% up to 75Hz (1 – 8 above 75Hz)
LowZ – Low impedance mode prevents false readings due to “Ghost” voltage
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode, Min/Max and Data Hold function
Auto Power Off

Accessories:

Carrying Case
9V Battery
Test Leads
Instruction Manual

Specifications

Function	Range	Resolution	Accuracy
DC Current	600.0A – 1000A	0.1A	± (2.5% + 5 Digits)
AC Current	600.0A – 1000A	0.1A	± (2.5% + 8 Digits)
DC Voltage	600.0mV – 1500V	0.1mV	± (0.5% + 8 Digits)
AC Voltage	6.000V – 1000V	1mV	± (1.5% + 5 Digits)
AC Voltage LowZ	6.000V – 1000V	1mV	± (3.0% + 40 Digits)
AC+DC TRMS Voltage	6.000V – 1000V	1mV	± (2.5% + 20 Digits)
Resistance	600.0Ω – 60.00MΩ	0.1Ω	± (1.0% + 10 Digits)
Frequency	9.999Hz – 9.99KHz	0.01Hz -10Hz	± (1.2% + 5 Digits)
Capacitance	60.00nF – 6000μF	0.01nF	± (4% + 20 Digits)
Temperature K-Type	-40 to 1000°C	0.1°C	± (1.5% + 3°C)
Duty Cycle	010.0% – 90.0%	0,1%	± (1.2% + 8 Digits)
Active Power	0.00 – 999.9kW	0.01kW	± (3.0% + 10 Digits)
Apparent Power	0.00 – 999.9kVA	0.01kVA	± (3.0% + 10 Digits)
Reactive Power	0.00 – 999.9kVAR	0.01kVAR	± (3.0% + 10 Digits)
Power factor	0.20 – 1.00	0,01	± (3%)
Active Energy resolution	0.000-99.99kW/kVA/kVAR	0.001kW/kVA/kVAR	± (3.0% + 10 Digits) kW/kVA/kVAR
True RMS Measurements	ACV, ACA
AC Bandwidth	50Hz to 60Hz
Digital Display	6000 TFT
Bargraph	Yes
Bluetooth	Yes
Records events and Trends	Yes
Data logging	Yes
Non-Contact Voltage (NCV)	Yes
Overrange indication	Yes
Continuity	Yes
Diode test	Yes
Jaw size	33mm

Downloads

Additional Information

Device	Clamp Meter
Type	True RMS \| Watt
Highlights	AC Voltage \| DC Voltage \| Frequency \| AC Current \| DC Current \| Resistance
