MAJ MT874

SKU: MAJ MT874

BRAND: Major Tech


Digital Multimeter 600V 10A AC/DC, 2000 Count, RES:2MΩ, Battery Test: 9V & 1.5V, Data Hold, Continuity, Diode, 154x74x43mm, 255g

Digital Multimeter 600V 10A

Overview

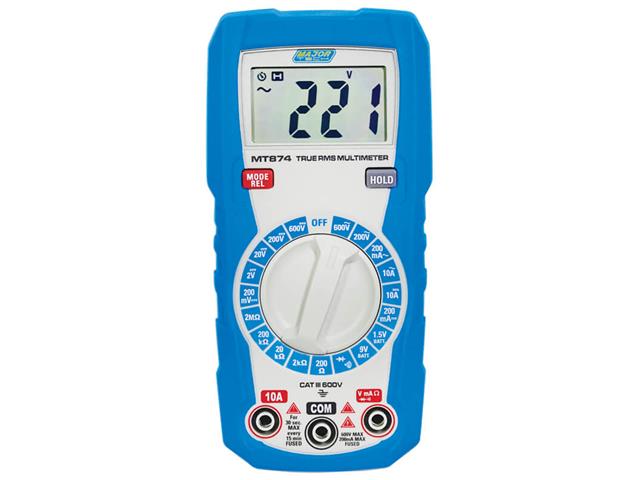

The MT874 True RMS 600V AC/DC Multimeter is a durable and attractive compact Multimeter with a high contrast LCD display with detailed display icons. Equipped with 7 measurement functions and 20 ranges, each test position is quickly and easily selected with a simple turn of the selector switch. The meter has a double moulded housing and has an IEC 61010-1 CAT III 600V safety rating. The sturdy structure is designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters.

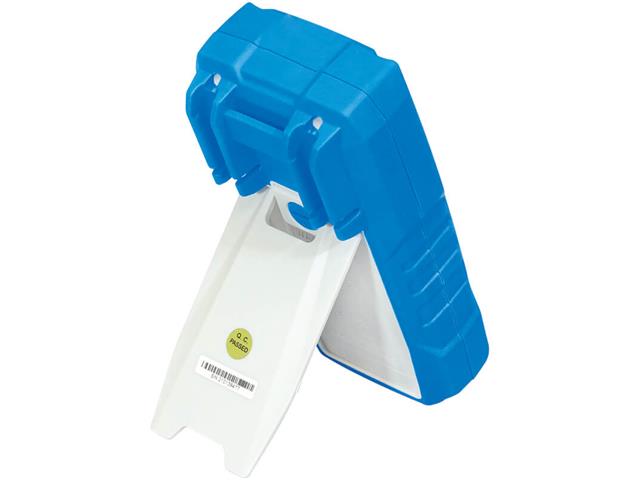

This 600V AC/DC Multimeter comes with a built-in tilt stand for hands free convenience as well as low battery indication and auto power off. This meter is suitable for commercial electricians, electronics technicians and DIY users.

Specifications

  • Additional Information
  • DC Current : 10A
  • DC Current resolution : 0.01A
  • DC Current accuracy : ±(2.0% +5)
  • AC Current : 10A
  • AC current resolution : 0.01A
  • AC Current accuracy : ±(2.0% +5)
  • DC Voltage : 600V
  • DC Voltage resolution : 1V
  • DC Voltage accuracy : ±(0.5% + 5d)
  • AC Voltage : 600V
  • AC Voltage resolution : 1V
  • AC voltage accuracy : ±(1.2% +10)
  • Resistance : 2MΩ
  • Resistance resolution : 0.001MΩ
  • Resistance accuracy : ±(0.8% +5)
  • Capacitance : 99.9mF
  • Capacitance resolution : 0.01mF
  • Capacitance accuracy : ±(3.5% + 5 Digits)
  • Frequency : 9.999Hz to 9.999MHz
  • Frequency resolution : 0.001MHz
  • Frequency accuracy : ±(1.2% +5)
  • Temperature : -18°C – 1000°C
  • Temperature resolution : 1°C
  • Temperature accuracy : ±(1.5% +5)
  • Duty Cycle : 0.5% – 99.9%
  • Duty Cycle resolution : 0.1%
  • Duty Cycle accuracy : ±(1.2% + 5 Digits)
  • Battery test : 9V, 1.5V
  • Continuity : Buzzer sounds at approx. 50Ω
  • Diode Test : Test current 1mA, open circuit voltage 3V
  • Data Hold : Yes
  • Batteries : 2 x AAA
  • Dimensions : 154 x 74 x 43mm
  • Weight : 255g

Downloads

Additional Information

Device Multimeter
Type Digital
