Digital Multimeter 600V 10A AC/DC, 4000 Count, Res:40MΩ, Data Hold, Continuity, Diode, Capacitance, Frequency, Temperature:-18°C – 1000°C, 154x74x43mm, 255g
Digital Multimeter 600V 10A
Overview

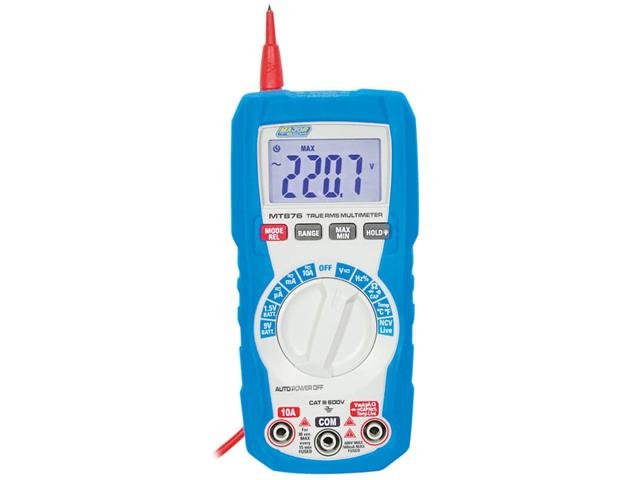

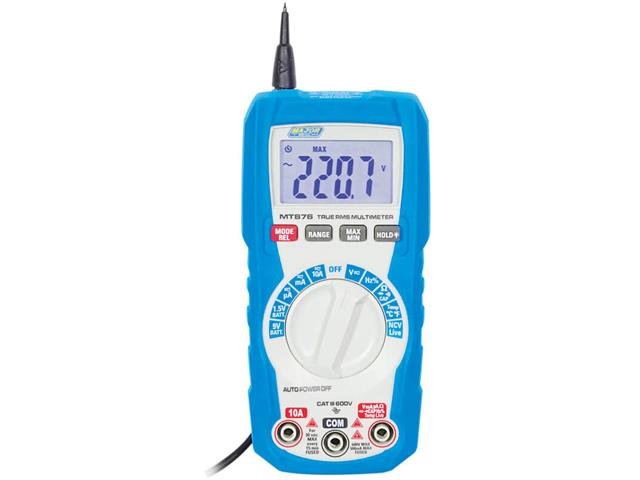

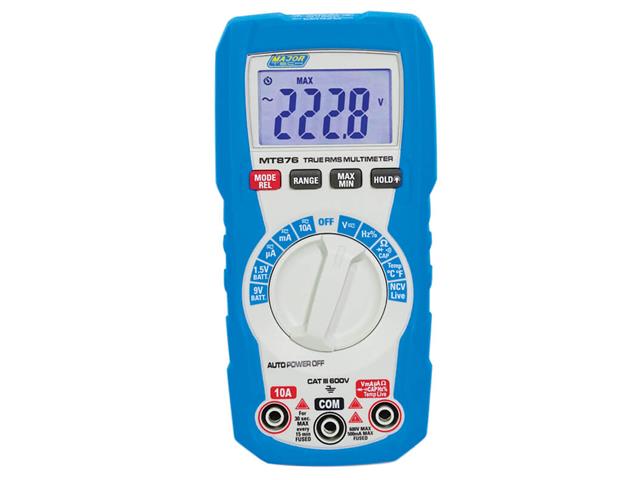

The MT876 is a 600V AC/DC True RMS Multimeter supplied in a double moulded rubber housing, designed to withstand the rugged environment of a work site and has been drop tested up to 2 meters. This is an auto ranging multimeter with the option of manual override and has a 4000 count display with a back light. The “Live” function allows the user to physically connect one lead to the Live or Neutral wires to determine the Live contact and when detected, LIVE is displayed on screen and the NCV indicator light flashes and the buzzer sounds. This meter conforms to the International Standard IEC 61010-1 CAT III 600V, and is ideally suited for everyday use by electricians, electronic technicians, the air conditioning industry and DIY users.
Features
- 4000 count with backlit LCD display
- Measures AC and DC voltage up to 600V
- Temperature measurement from -18⁰C to 1000⁰C
- Capacitance to 100mF
- Frequency to 10MHz
- Resistance to 40MΩ
- Battery test for 1.5V and 9V batteries
- Detection of LIVE wire
- Duty Cycle
- Min, Max and Data Hold
- Auto Power Off
- NCV – Non-Contact Voltage Detector
Accessories:

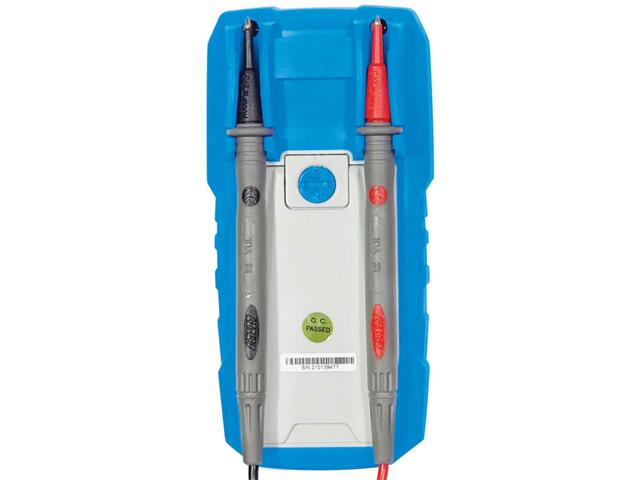

- Test Leads
- Type-K Temperature Probe
Specifications
ADDITIONAL INFORMATION
| DC Current |
10A
|
| DC Current resolution |
0.01A
|
| DC Current accuracy |
±(1.0% +5)
|
| AC Current |
10A
|
| AC current resolution |
0.01A
|
| AC Current accuracy |
±(1%+5)
|
| DC Voltage |
600V
|
| DC Voltage resolution |
1V
|
| DC Voltage accuracy |
±(0.5% + 8 Digits)
|
| AC Voltage |
600V
|
| AC Voltage resolution |
1V
|
| AC voltage accuracy |
±(1.2% +5)
|
| Resistance |
40MΩ
|
| Resistance resolution |
0.01MΩ
|
| Resistance accuracy |
±(1.2%+5)
|
| Capacitance |
99.9mF
|
| Capacitance resolution |
0.01mF
|
| Capacitance accuracy |
±(3.5% + 5 Digits)
|
| Frequency |
9.999Hz to 9.999MHz
|
| Frequency resolution |
0.001MHz
|
| Frequency accuracy |
±(1.2% +5)
|
| Temperature |
-18°C – 1000°C
|
| Temperature resolution |
1°C
|
| Temperature accuracy |
±(1.5% +5)
|
| Duty Cycle |
0.5% – 99.9%
|
| Duty Cycle resolution |
0.1%
|
| Duty Cycle accuracy |
±(1.2% + 5 Digits)
|
| Continuity |
Buzzer sounds at approx. 50Ω
|
| Diode Test |
Test current 1mA, open circuit voltage 3V
|
| Min Max |
Yes
|
| Data Hold |
Yes
|
| Batteries |
2 x AAA
|
| Dimensions |
154 x 74 x 43mm
|
| Weight |
255g
|
Downloads
Additional Information
| Device |
Multimeter |
| Type |
Digital |
