MAJ MT948

SKU: MAJ MT948

BRAND: Major Tech


Thermo-Anemometer, Separate Vane

Thermo-Anemometer, Separate Vane

Overview

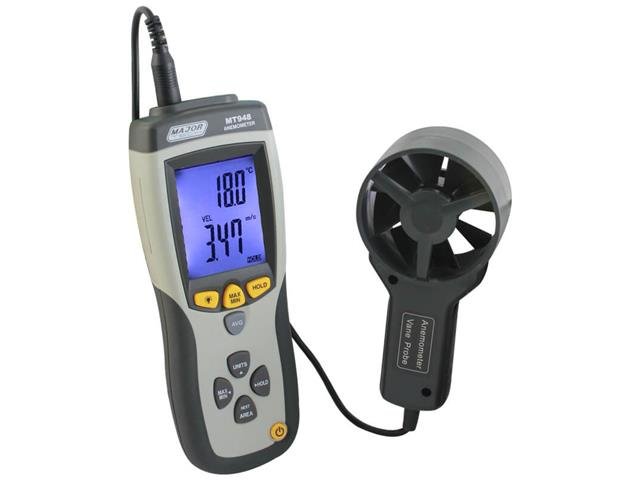

The MT948 is a Thermo Anemometer that accurately measures Air Velocity, Air Flow and Temperature. The meter is capable of measuring CMM (cubic meters/minute) or CFM (cubic feet/minute) by simply entering the area of the air source and can store 8 memory locations for both CMM and CFM for the most commonly used area sizes that the user can recall at anytime. The remote vane has a built-in temperature sensor, which simultaneously displays the wind speed and temperature on the large easy to read backlit LCD. The MT948 is ideal for monitoring commercial and domestic air conditioning systems. The MT948 is useful as the sensor can be held in the duct and the operator can read the measurements.

Features

  • Simultaneously displays air flow/air velocity plus ambient temperature
  • CMM air flow from 0.001 to 999900m³/min (area)
  • CFM air flow from 0.001 to 999900ft³/min (area)
  • Temperature -10°C to 60°C
  • Resolution 0.01m/s
  • 20 Points average for air flow
  • 16 Memory locations for commonly used area size
  • Wind speed measure in mph, ft/min, km/h, m/s or knots
  • Max / Min
  • Data Logging

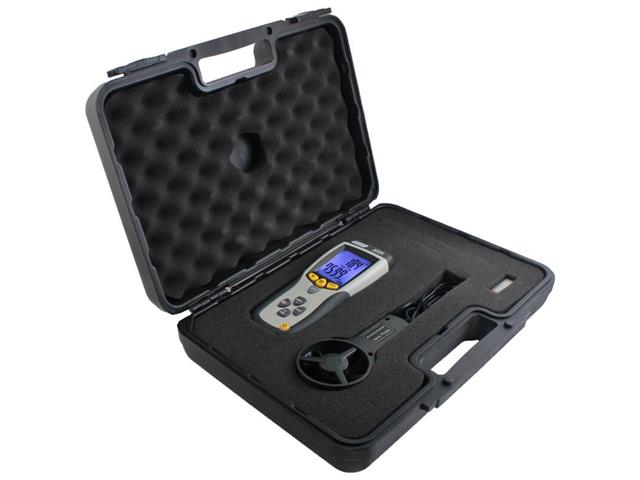

Accessories:

  • Carrying Case
  • 9V Battery
  • Instruction Manual
  • Vane

Specifications

Air velocity m/s

0.40 to 30.00 m/s

Air velocity m/s resolution

0.01m/s

Air velocity m/s accuracy

±(3%+0.20 m/s)

Air velocity km/h

1.4 to 108.0 km/h

Air Velocity resolution km/h

0.1km/h

Air velocity km/h accuracy

±(3%+0.8 km/hr)

Air velocity ft/min

80 to 5900 ft/min

Air velocity MPH

0.9 to 67.0 mph

Air velocity MPH resolution

0.1mph

Air velocity MPH accuracy

±(3%+0.4 mph)

Air velocity knots

0.8 to 58.0 knots

Air velocity knots accuracy

±(3%+0.4 knots)

Air flow Cubic m/min

0 to 999900 m³/min

Air flow Cubic ft/min

1 to 999900ft³/min

Air temperature

10 to 60°C

Air temperature resolution

0.1°C

Air temperature accuracy

2.0°C

Display

Dual Function 4 digit LCD

Min Max Ave

Yes

Over-range indication

Yes

Data Hold

Yes

Back Light

Yes

Enclosure

Over Moulded casing

Low battery indication

Yes

Power source

6F22

Weight

725g

Dimensions

203 x 75 x 50m, sensor head 70mm diameter

Downloads

Additional Information

Device Thermo-Anemometer
Type Digital
