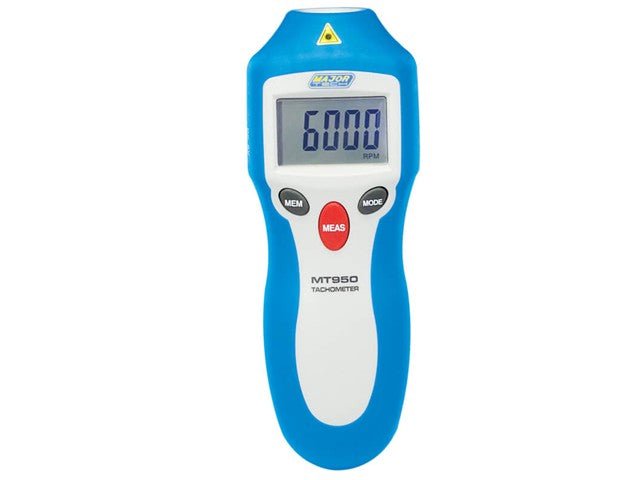

2 – 100 000RPM Non-Contact Tachometer

Non-Contact Tachometer

Overview

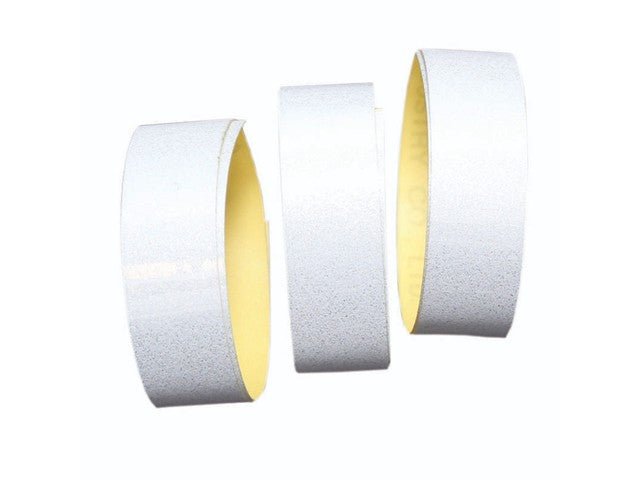

The MT950 is a Non-Contact Tachometer that provides fast and accurate non-contact revolutionary measurements for rotating objects. Using reflective tape on an object to be measured, simply point the laser at the object, the tachometer RPM will then measure up to a maximum of 100,000 revolutions with an accuracy of ±0.05% and a fast sampling time of 0.5 seconds. The MT950 has a built-in memory that recalls the Min/Max and last value stored. The meter can also be used as a Total TOT counter where the meter can be set up to count passing objects. The MT950 is lightweight and easy to operate.

Features

  • Fast and accurate non-contact RPM and TOT measurements of rotating objects
  • RPM Non-contact range: 2 – 100 000RPM
  • TOT count mode range: 1 – 100 000RPM
  • Detecting distance: 50 – 500mm
  • 5 Digit backlit LCD
  • Auto Range
  • Data Hold
  • 40 Reading memories
  • Min / Max
  • Resolution 0.1RPM
  • Built-in laser spot

Specifications

Function Range Resolution Accuracy
Non-Contact Test Range 2 – 100 000 RPM 0.1RPM ± (0.05% + 1 Digit)
Count Range 1 – 99 999 REV
Sampling Time 0.5s (over 120RPM)
Detection Distance 50mm – 500mm
Time Base Quartz crystal
Digital Display 5 Digit LCD
Overrange Indication Yes
Min Max Yes
Data Hold Yes
Back Light Yes
Enclosure Over mould
Low Battery Indication Yes
Batteries 9V
Weight 160g
Dimensions 160 x 60 x 42mm

Downloads

Additional Information

Device Tachometer
Type Non-Contact
Experience precision with the MAJ MT950 Non-Contact Tachometer, measuring up to 100,000 RPM with unparalleled accuracy. Its lightweight design and laser technology allow for easy, fast measurements of rotating objects, making it ideal for professionals. Benefit from built-in memory, auto-range, and a clear backlit display for effortless data reading. Elevate your efficiency and ensure optimal performance with this essential tool.
