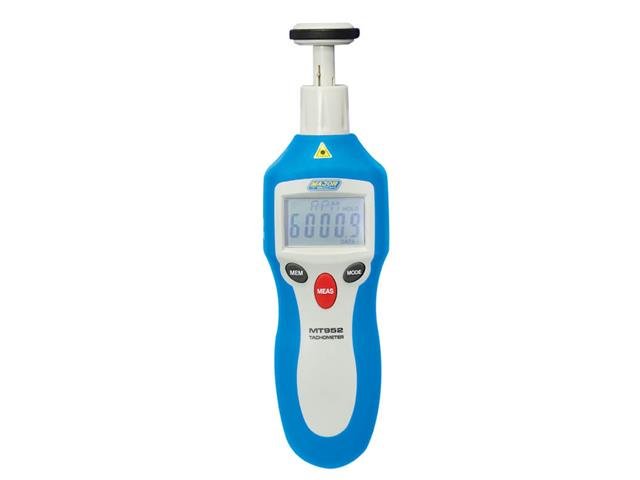

The MT952 is a combination of a Contact / Non-Contact Tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000RPM. The MT952 is supplied standard with an adaptor that converts the MT952 into a tachometer for measuring surface and axial speeds. The meter is capable of various measurements such as Rotation Speed, Total Revolutions, Frequency, Surface speed and length. The instrument is ideally suited for use with engines, process machinery, motors and machine tools.
Features
Combination non-contact and contact digital tachometer for convenient, fast and accurate measuring of high rotational speeds up to 100 000RPM
RPM Contact range 2 – 20 000RPM
RPM Non-contact range 2 – 100 000RPM
Detecting distance 50 – 500mm
5 Digit backlit LCD
Auto Range
Data Hold
40 Reading memories
Min / Max / Avg
Resolution 0.1RPM
Built-in laser spot
Accessories:
Soft Carrying Case
9V Battery
Instruction manual

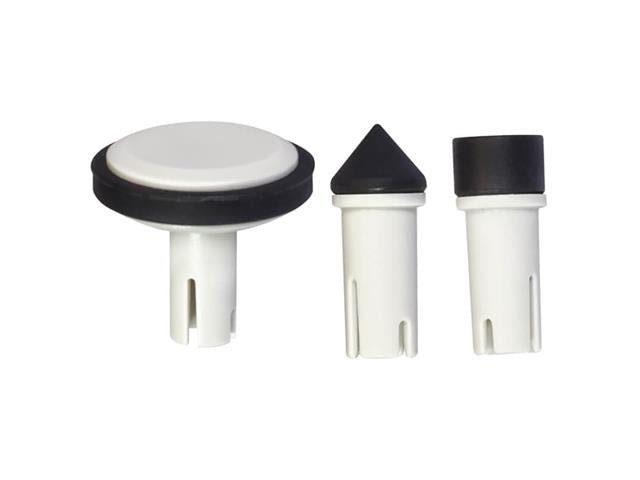

3 x MT905
1 x MT952CW
Specifications
Contact test range
2 to 20 000RPM
Contact resolution
0.1RPM
Contact accuracy
±(0.05% +1)
Non contact test range
2 to 99 999RPM
Non contact resolution
0.1RPM
Non contact accuracy
±(0.05% +1)
Sampling time
0.5 seconds (over 120RPM)
Detection distance
50mm to 500mm
Time base
Quartz crystal
Digital Display
5 Digit LCD
Over-range indication
Yes
Min Max
Yes
Data Hold
Yes
Back Light
Yes
Enclosure
Over mould
Low battery indication
Yes
Power source
6LF22
Weight
160g
Dimensions
160 x 60 x 42mm
Additional Information
Device
Tachometer
Type
Contact & Non-Contact
