Overview

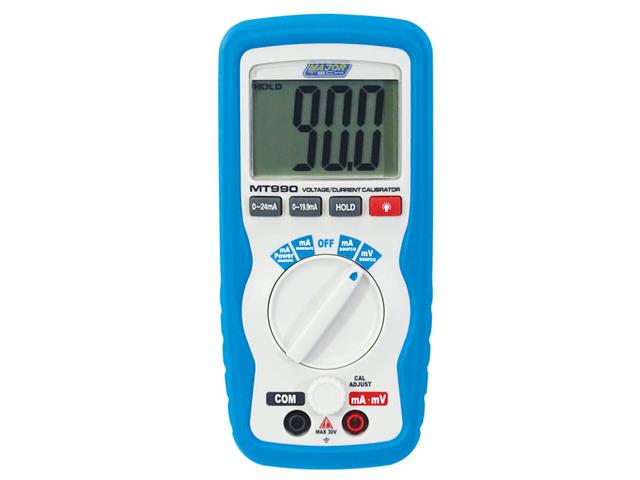

The MT990 Digital Process Current Calibrator is a portable instrument used for calibrating process devices and measuring process signals, as well as general purpose signal injection applications. This meter has four modes to provide the quality and accuracy of a bench top calibrator; these include a precision current source up to 24mA, current measurement of current signal, DC mV source and the power and measurement of a two-wire loop. The MT990 ensures correct measurements on mass, volume, length, electricity, flow, pressure, heat and thermal energy. Saves you money by reducing waste due to accurate measurements. Enables smooth production processes.
Features
- Measuring process signals
- General purpose signal injection applications
- Current loop calibrator
- Load output 0 – 24mA
- Calibrator drives loads to 500Ω
- Adjustable – 199.9mV to +199.9mV DCV source
- Powers or measures a two wire current loop
- 4 Functions – current source, current measurement, DC mV source, power and current measurement of two wire loop
Accessories:
- Carrying case
- 9V Battery

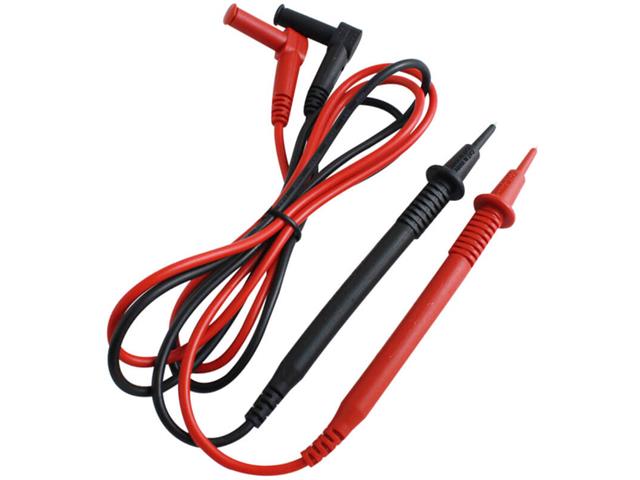

- Test leads
- Instruction manual
Specifications
DC Current |
0-24mA
|
DC Current accuracy |
±(0.5%FS +1d)
|
DC Current resolution |
0.01mA
|
DC Voltage |
-199.9mV to 199.9mV'
|
DC Voltage accuracy |
±(0.25%FS +1d)
|
DC Voltage resolution |
0.1mV
|
4-20mA% |
Yes
|
Back Light |
Yes
|
Data Hold |
Yes
|
Digital Display |
1999 count
|
Low battery indication |
Yes
|
Power source |
6F22
|
Enclosure |
Double Molded case
|
Weight |
232g
|
Dimensions |
150 x 70 x 40m
|
Downloads
Additional Information
Device |
Calibrator |
Type |
Digital | Process | Current |
