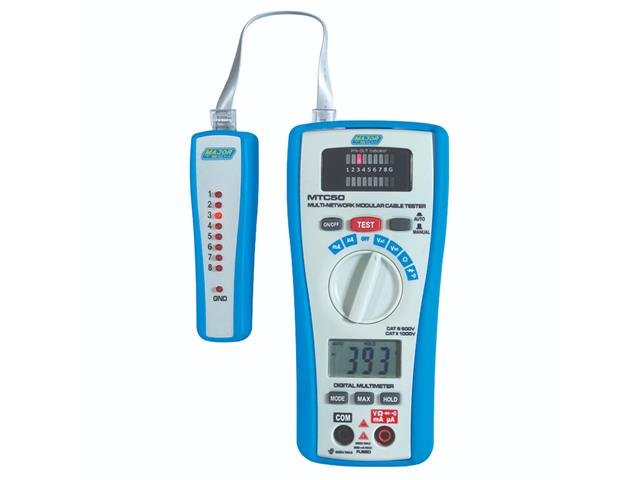

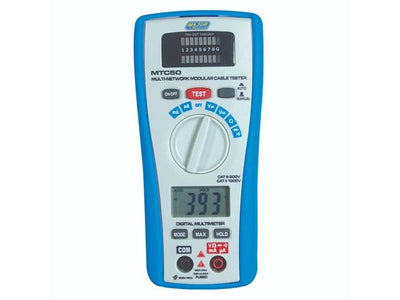

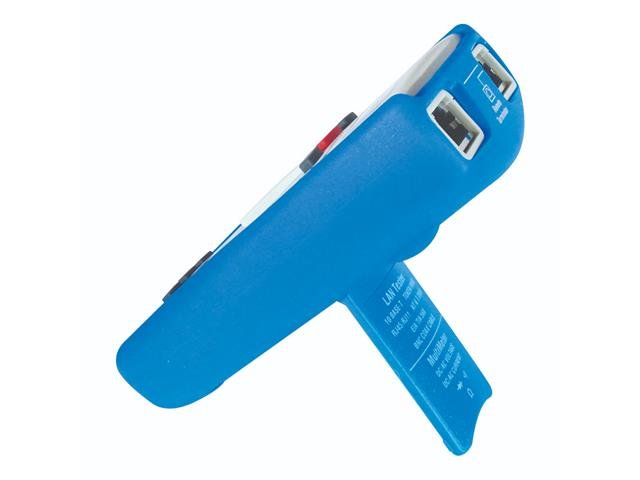

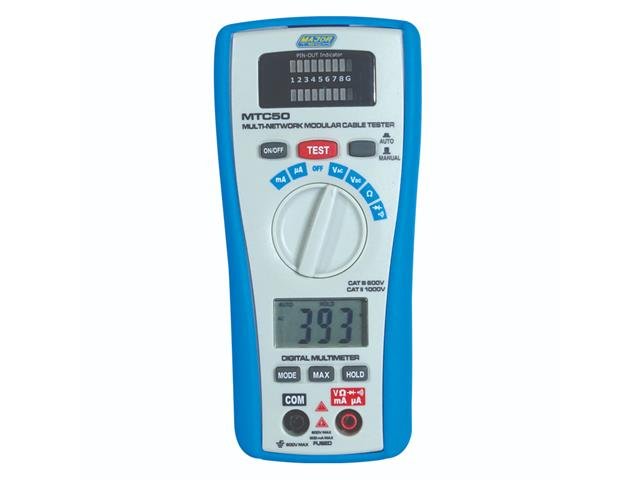

The MTC50 is a 2-In-1 LAN Tester and Multimeter. This meter has been designed as a very practical tester that can easily read the correct pin configuration of 10/100 Base-T cable (Category 5), 10Base-2 cable (coax), RJ45/RJ11 modular cables, AT&T 258A, 356A, TIA-568A/568B and Token Ring cable by comparing one transmitting end to the corresponding receiving end. With the remote kit test cables can be installed over long distances either on wall plates or patch panels. It is easy to verify the cable continuity, open, short and cross-connect. The auto range digital multimeter allows the user to measure AC and DC voltage, AC and DC current, Resistance, Continuity and Diode test.

• LED displays the actual pin configuration and tests the correct pin configuration of 100Base-T, 10Base-T, 10Base-2 Thin Ethernet cable, RJ45/RJ11 modular cables 356A, TIA- 568A/568B and Token Ring cable etc.
• With remote kit it can remotely test cables up to 300m away either on wall plate or patch panel
• Can test the grounding
• Provides easy to read continuity and fault status display
• Measures ACV and DCV up to 600V, ACA and DCA up to 200mA.
• Locked Status wiring function
• LAN Testing
• Tests CAT 5 Installations

Accessories:

• Carrying Case
• 9V Battery AAA
• Test Leads
• Instruction Manual
