MAJ MTD70T

Name: MAJ MTD70T - Communica [Part No: MAJ MTD70T]
Brand: Major Tech
SKU: MAJ MTD70T
Price: 585 ZAR
Availability: InStock

SKU: MAJ MTD70T

BRAND: Major Tech

In Stock
R 672.75_{(inc VAT)}
R 585.00_{(ex VAT)}

Collections: Test & Measurement

Type: Clamp Multimeters & Accessories

Category: Digital Clamp Meter

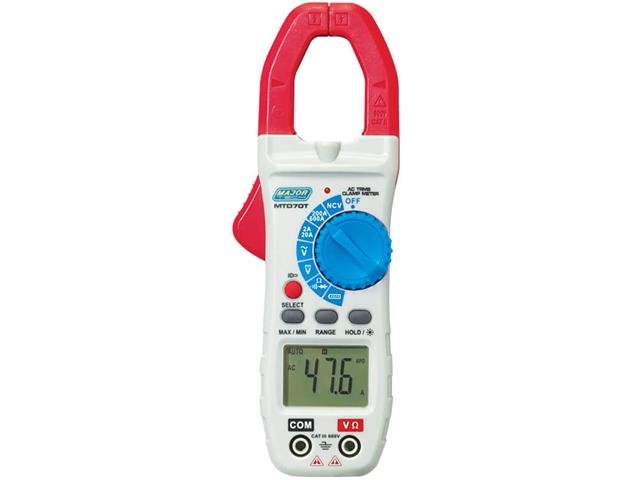

600A AC TRMS Digital Clamp Meter

Overview

The MTD70T 600A True RMS AC Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy features include a backlit LCD display and flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see if voltage is present on circuit under test. It comes with a 28mm Jaw opening and measures 0.001A to 600A AC, DC and AC Volt, Resistance, Continuity buzzer and Diode Test.

Features

Measures AC Current to 600A
Measures AC & DC Voltage to 600V
Resistance to 20MΩ
28mm conductor size
2000 count LCD display with backlight
Continuity and buzzer test
Data hold functions
Non-Contact Voltage
Auto power off
Low battery indication

Accessories

Carrying Case
Test Leads
Instruction Manual

Specifications

DC Voltage	200mV – 2V – 20V – 200V – 600V
DC Voltage accuracy	±(0.5% + 5d)
AC Voltage	200mV – 2V – 20V – 200V – 600V
AC voltage accuracy	±(1.0% +5)
AC Current	2A – 20A – 200A – 600A
AC Current accuracy	±(2.0% +5)
Resistance	200Ω – 2kΩ – 20kΩ – 200kΩ – 2MΩ – 20MΩ
Resistance accuracy	±(0.8% + 1d)
Continuity	Buzzer sounds at approx. 50Ω
Diode Test	Test current 0.8mA, open circuit voltage 2.2V
Power source	2 x 1.5V AAA batteries
Dimensions	185 x 65 x 37mm
Weight	280g

Downloads

User Manual - MAJ MTD70T

Additional Information

Device	Clamp Meter
Type	600A \| AC TRMS \| Digital
