Overview

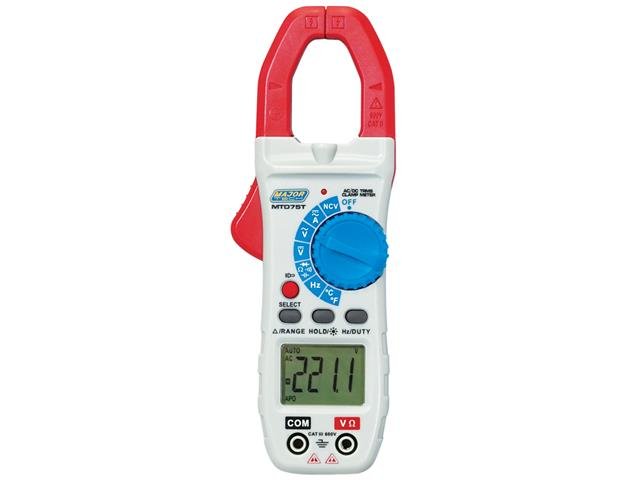

The MTD75T 800A AC/DC TRMS Clamp Meter is a useful tool that allows you to safely test for electrical problems, motor’s condition and current on appliances. Equipped to test any electrical circuit without disconnecting any wires. Handy function includes a backlit LCD display and Flashlight for working in dimly lit areas. The NCV Non-Contact Voltage detector is useful for a quick check to see it voltage is present on circuit under test. It has a 28mm Jaw opening and measures 0.01A to 800A AC & DC, 0.1mV to 600V AC/DC, Temperature, Capacitance, Frequency, Resistance, Continuity buzzer and Diode Test.
Features
- Measures AC & DC Current, AC Voltage, DC Voltage, Temperature, Capacitance, Frequency and Resistance
- Measures current to 800 Amps without breaking the circuit
- Resolution to 1A AC and DC Current
- 28mm conductor size
- 6000 count LCD display with backlight
- Continuity and buzzer test
- Data hold and Duty Cycle function
- Auto power off
- Low battery indication
Accessories
- Carrying Case
- Test Leads
- Air Temperature Probes
- Instruction Manual
Specifications
| DC Voltage |
600mV – 6V – 60V – 600V
|
| DC Voltage accuracy |
±(0.5% + 5d)
|
| AC Voltage |
6V – 60V – 600V
|
| AC voltage accuracy |
±(0.8%+5)
|
| DC Current |
60A – 600A – 800A
|
| DC Current accuracy |
±(1.5% +5)
|
| AC Current |
60A – 600A – 800A
|
| AC Current accuracy |
±(1.5% +5)
|
| Resistance |
600Ω – 6kΩ – 60kΩ – 600kΩ – 6MΩ – 60MΩ
|
| Resistance accuracy |
±(0.8% + 1d)
|
| Capacitance |
6nF – 60nF – 600nF – 6uF – 60uF – 600uF – 6mF – 60mF
|
| Capacitance accuracy |
±(2.5% + 5d)
|
| Frequency |
10Hz – 100Hz – 1kHz – 10kHz – 100kHz – 1MHz – 10MHz
|
| Frequency accuracy |
±(0.5% + 4d)
|
| Temperature |
-40 to 1000°C
|
| Temperature accuracy |
±(1.0% + 5°C)
|
| Continuity |
Buzzer sounds at approx. 50Ω
|
| Diode Test |
Test current 0.8mA, open circuit voltage 2.2V
|
| Power source |
2 x 1.5V AAA batteries
|
| Dimensions |
185 x 65 x 37mm
|
| Weight |
180g
|
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
800A | AC/DC | TRMS |
